Puch disc brake

Brake caliper EBR Harry

Color: silver · Saddle type: Fixed saddle · Mounting type: Screws · Number of fixing points: 2 pcs

EBR fork upside-down super strong | Puch

Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Surface: varnished · Color: Chrome · Color: black · Adjustable: Yes · Ø spars: 30 mm · Spar end distance (center-center): 145 mm · Ø outer head tube: 25.15 mm · Ø head tube inside: 20.7 mm · Head tube length: 217 mm · Total length: 720 mm · Fork bridge - center wheel axle: 468 mm · Distance brake cam to wheel axle center-center: 40 mm · Thread type: MF26x1 (fine pitch thread) · Thread length: 58 mm

Mounting plate disc brake EBR fork

Material: Aluminum · Thickness: 6.5 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Ø mounting hole: 8.2 mm

EBR fork reinforced chrome (with tabs for disc brake) | Puch

Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Color: Chrome · Ø head tube inside: 22 mm · Head tube length: 180 mm · Total length: 580 mm

Brake caliper disc brake EBR Harry & hydraulic

Surface: varnished · Color: red · Saddle type: Floating saddle (fist saddle) · Total length: 105 mm · Width: 65 mm · Height: 82 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Hole spacing: 42 mm · Thread type: M8x1.25 (standard thread) · Ø External connection: 10 mm

swiing® revival wheel axle M12x1 x 170 mm EBR thru axle galvanized

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Ø shaft: 11.95 mm · Thread type: MF12x1 (fine pitch thread) · Thread length: 25 mm · Total length: 170 mm

swiing® ingenious disc brake set EBR Harry | Puch

Manufacturer: swiing® ingenious parts · Color: black

swiing® ingenious disc brake set cast rim EBR hydraulic | Puch

Manufacturer: swiing® ingenious parts · Color: black

swiing® ingenious disc brake set cast rim EBR hydraulic | Puch

Manufacturer: EWC · Manufacturer: swiing® ingenious parts · Color: black

swiing® ingenious wheel hub spoke rim with disc brake chrome

Manufacturer: swiing® ingenious parts · Color: Chrome · Material: Aluminum · Surface: chrome-plated · Area of application: Cross · Area of application: MX · Area of application: Performance · Area of application: Racing · Area of application: Tuning · Ø outside: 120 mm · Ø axle: 12 mm · Ø Receptacle: 12 mm · Ø bolt circle: 104.5 mm · Width: 77 mm · Thread type: M8x1.25 (standard thread) · Number of spoke holes: 36 pcs · Ø spoke hole: 3.7 mm · Number of fixing points: 5 pcs

swiing® ingenious wheel hub spoke rim with disc brake black

Manufacturer: swiing® ingenious parts · Color: black · Material: Aluminum · Surface: anodized · Ø inside: 12 mm · Ø outside: 32 mm · Ø bolt circle: 104.5 mm · Width: 77 mm · Number of spoke holes: 36 pcs · Ø spoke hole: 3.7 mm

swiing® ingenious disc brake system cast rim | Puch

Manufacturer: swiing® ingenious parts · Color: red · Ø outside: 230 mm · Ø inside: 92 mm · Thickness: 3 mm

Tapered roller bearing Steering head bearing Cross fork

Bearing type: Tapered roller bearing · Ø outside: 44 mm · Ø inside: 22 mm · Height: 15.4 mm

swiing® ingenious wheel hub disc brake cast rim red | Puch

Manufacturer: swiing® ingenious parts · Color: red · Material: Aluminum · Surface: anodized · Wheel size [inch]: 17 "

swiing® ingenious wheel hub disc brake cast rim chrome | Puch

Manufacturer: swiing® ingenious parts · Color: Chrome · Material: Aluminum · Surface: chrome-plated · Wheel size [inch]: 17 "

Spoked rim 17" solid aluminum front disc brake

Material: Aluminum · Wheel size [inch]: 17 " · Overall width outside: 47 mm · Ø spoke: 3.5 mm · Jaw width [inch]: 1.4 " · Ø brake disk outside: 220 mm · Thick brake disk: 3 mm

swiing® ingenious bearing shells Steering head bearing Cross fork (tapered roller bearing)

Manufacturer: swiing® ingenious parts · Material: Steel · Ø mounting frame: 31 mm · Ø outside: 49 mm · Height: 39 mm

Set brake lever with brake calliper Cross fork

Color: black · Color: silver · Total length: 110 mm

Brake pads for brake caliper disc brake cross fork

Quantity: 2 pcs · Width: 77 mm · Height: 42 mm · Thickness: 7 mm · Number of fixing points: 2 pcs · Ø mounting hole: 6.6 mm · Hole spacing: 40 mm · Area of application: Standard

Brake caliper 15 mm axle cross

Material: Steel · Surface: varnished · Color: black · Saddle type: Fixed saddle · Total length: 120 mm · Width: 85 mm · Height: 160 mm · Mounting type: Nuts & bolts · Number of fixing points: 2 pcs

swiing® ingenious wheel hub disc brake cast rim gold | Puch

Manufacturer: swiing® ingenious parts · Color: gold · Material: Aluminum · Surface: polished · Ø outside: 118 mm · Ø bolt circle: 105.5 mm · Width: 70.5 mm

Brake lever full cast left (Magura replica) | Puch DS50, VZ50, MS50, VS50, MV50

Material: Cast aluminum · Surface: polished · Color: reflective · Place of use: Universal · Total length: 135 mm · Thickness: 14.6 mm · Height: 42.6 mm · Puch OEM number: 350.4.32.117.2

Disc brake set for cast rim & EBR fork | Puch

Manufacturer: Quenching · Ø Handlebars: 22 mm · Ø outside: 240 mm · Cable length: 850 mm

swiing® ingenious wheel hub spoked rim with disc brake gold

Ø inside: 12 mm · Manufacturer: swiing® ingenious parts · Ø outside: 32 mm · Width: 77 mm · Material: Aluminum · Surface: gold-plated · Color: gold · Ø bolt circle: 104.5 mm · Ø bolt circle: 105.5 mm · Number of spoke holes: 36 pcs · Ø spoke hole: 3.7 mm

Brake disk Ø 190 mm Cross

Material: Steel · Surface: ground · Ø outside: 190 mm · Ø inside: 76 mm · Thickness: 3.5 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Ø bolt circle: 100 mm · Ø mounting hole: 10.6 mm

Screw set M8 x 15 brake disk Cross

Material: Steel · Surface: galvanized (blue) · Thread type: M8x1.25 (standard thread) · Drive: Hexagon socket · Screw head: Lens head · Thread length: 15 mm · Number of components: 4 pcs

swiing® ingenious brake disk "Classic"

Manufacturer: swiing® ingenious parts · Material: Steel · Ø outside: 225 mm · Ø inside: 92 mm · Thickness: 3 mm · Mounting type: Screws · Number of fixing points: 5 pcs · Ø bolt circle: 105.5 mm · Ø mounting hole: 8.3 mm

Brake pads 61.5/28/7.3 Disc brake EBR Harry & hydraulic

Manufacturer: NewFren · Material: Composite materials · Material: Steel · Quantity: 2 pcs · Total length: 61.5 mm · Width: 28 mm · Thickness: 7.3 mm

EBR telescopic fork hydraulic extended black (with tabs for disc brake) | Puch

Manufacturer: EWC · Material: Aluminum · Material: Steel · Surface: chrome-plated · Surface: varnished · Color: Chrome · Color: black · Adjustable: Yes · Ø spars: 28 mm · Spar end distance (center-center): 150 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22.15 mm · Head tube length: 200 mm · Total length: 675 mm · Fork bridge - center wheel axle: 445 mm · Distance brake cam to wheel axle center-center: 35 mm · Thread type: MF26x1 (fine pitch thread) · Thread length: 58 mm

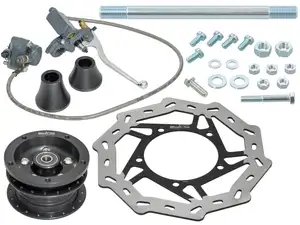

swiing® ingenious disc brake set spoked rim EBR hydraulic black

Manufacturer: swiing® ingenious parts · Color: black

swiing® ingenious disc brake set spoked rim EBR Harry chrome

Manufacturer: swiing® ingenious parts

swiing® ingenious disc brake set spoked rim EBR Harry black

Manufacturer: swiing® ingenious parts

swiing® ingenious disc brake set spoke rim EBR hydraulic chrome

Manufacturer: swiing® ingenious parts · Color: Chrome

Hydraulic moped cross fork with disc brake | Puch

Color: black · Adjustable: Yes · Total length: 730 mm

swiing® ingenious adjusting nut M26x1 control bearing

Manufacturer: swiing® ingenious parts · Material: Steel · Surface: Hardened · Color: black · Thread type: MF26x1 (fine pitch thread)

EBR telescopic fork aluminum (Harry) black | Puch

Thread type: MF26x1 (fine pitch thread) · Manufacturer: EWC · Material: Aluminum · Material: Steel · Surface: chrome-plated · Surface: varnished · Color: Chrome · Color: black · Spar end distance (center-center): 150 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22.3 mm · Ø spars: 30 mm · Adjustable: Yes · Thread length: 58 mm · Head tube length: 200 mm · Fork bridge - center wheel axle: 450 mm · Total length: 680 mm

swiing® ingenious screw set disc brake cast wheel | Puch

Manufacturer: swiing® ingenious parts · Material: Steel · Surface: galvanized (blue) · Number of components: 5 pcs · Drive: External hexagon · Screw head: Hexagon

swiing® ingenious brake disk "Wave"

Manufacturer: swiing® ingenious parts · Thickness: 3 mm · Material: Steel · Ø mounting hole: 8.3 mm · Mounting type: Screws · Number of fixing points: 5 pcs · Ø inside: 92 mm · Ø outside: 225 mm · Ø bolt circle: 105.5 mm

swiing® revival wheel axle M12x1 x 220 thru axle EBR Harry galvanized

Thread type: MF12x1 (fine pitch thread) · Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Total length: 220 mm · Thread length: 25 mm · Ø shaft: 11.95 mm

swiing control bearing M26x1, 31 mm High End | Puch

Manufacturer: swiing · Material: Steel · Surface: gas nitrided · Bearing type: Bearing ring · Thread type: MF26x1 (fine pitch thread) · Ø inside: 26.8 mm · Ø mounting frame: 21.15 mm · Ø outside: 43.3 mm · Color: black

swiing® ingenious wheel hub disc brake cast rim black | Puch

Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: anodized · Color: black

swiing® ingenious disc brake set EBR Harry | Puch

Manufacturer: EWC · Manufacturer: swiing® ingenious parts
