High-quality disc brake system for your Puch moped / moped, which can be fitted without any modifications.
All add-on parts are of the highest quality and accuracy of fit. The components are designed for the 5-star cast rim for Puch mopeds. The corresponding rim and matching EBR Harry forks can be found in the accessories section.
The brake calliper and brake lever are already fitted with brake fluid and therefore only need to be bolted on. The steel flex brake cable is 90 cm long. Bear this in mind when selecting the handlebars. All screw connections must be secured with Loctite.
The two spacers are mounted in the direction of travel as follows: left: 26.25 mm long / right: 23.5 mm long.
When you buy this complete set, you get a big percentage off the retail price of the individual parts.

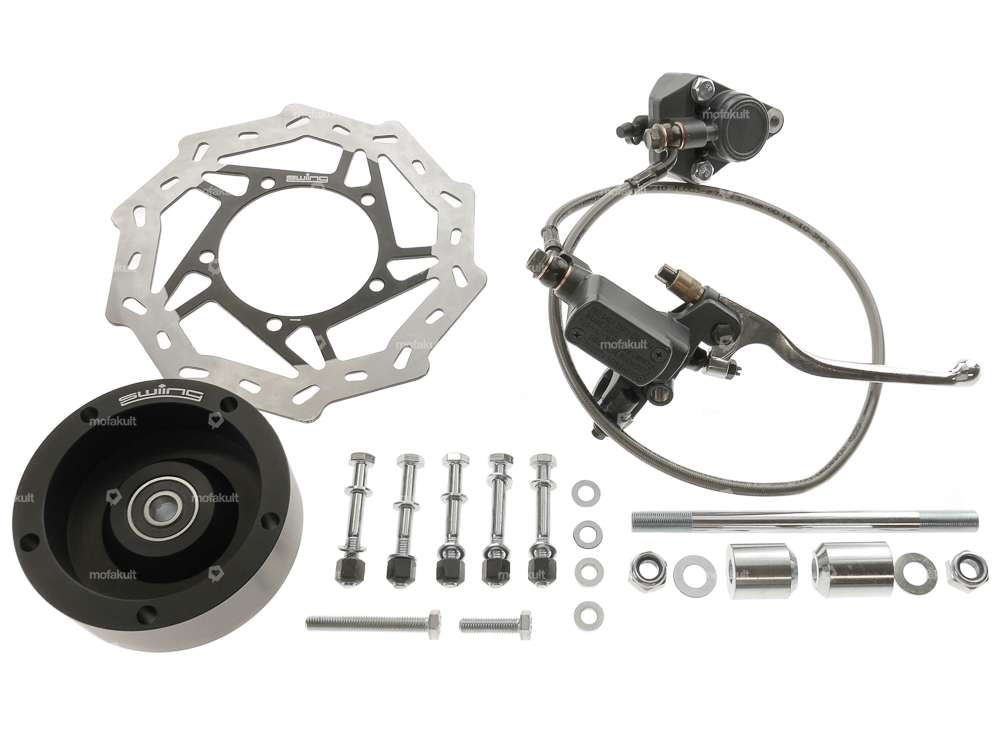

The set includes the following fixed parts:
Material: Cast aluminum · Surface: varnished · Color: gray · Cable length: 900 mm · Brake lever length (lever length): 162 mm · Mounting type: Nuts & bolts · Number of fixing points: 4 pcs · Ø Handlebars: 22 mm · Hole spacing: 60 mm, 32 mm · Thread type: M8x1.25 (standard thread)
Manufacturer: swiing® ingenious parts
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Ø shaft: 11.95 mm · Thread type: MF12x1 (fine pitch thread) · Thread length: 25 mm · Total length: 220 mm
Manufacturer: swiing® ingenious parts · Drive: External hexagon · Screw head: Hexagon · Number of components: 5 pcs · Material: Steel · Surface: galvanized (blue)
Details
| Manufacturer | swiing® ingenious parts |
| Color | black |
Suitable for the following models
| Puch |
