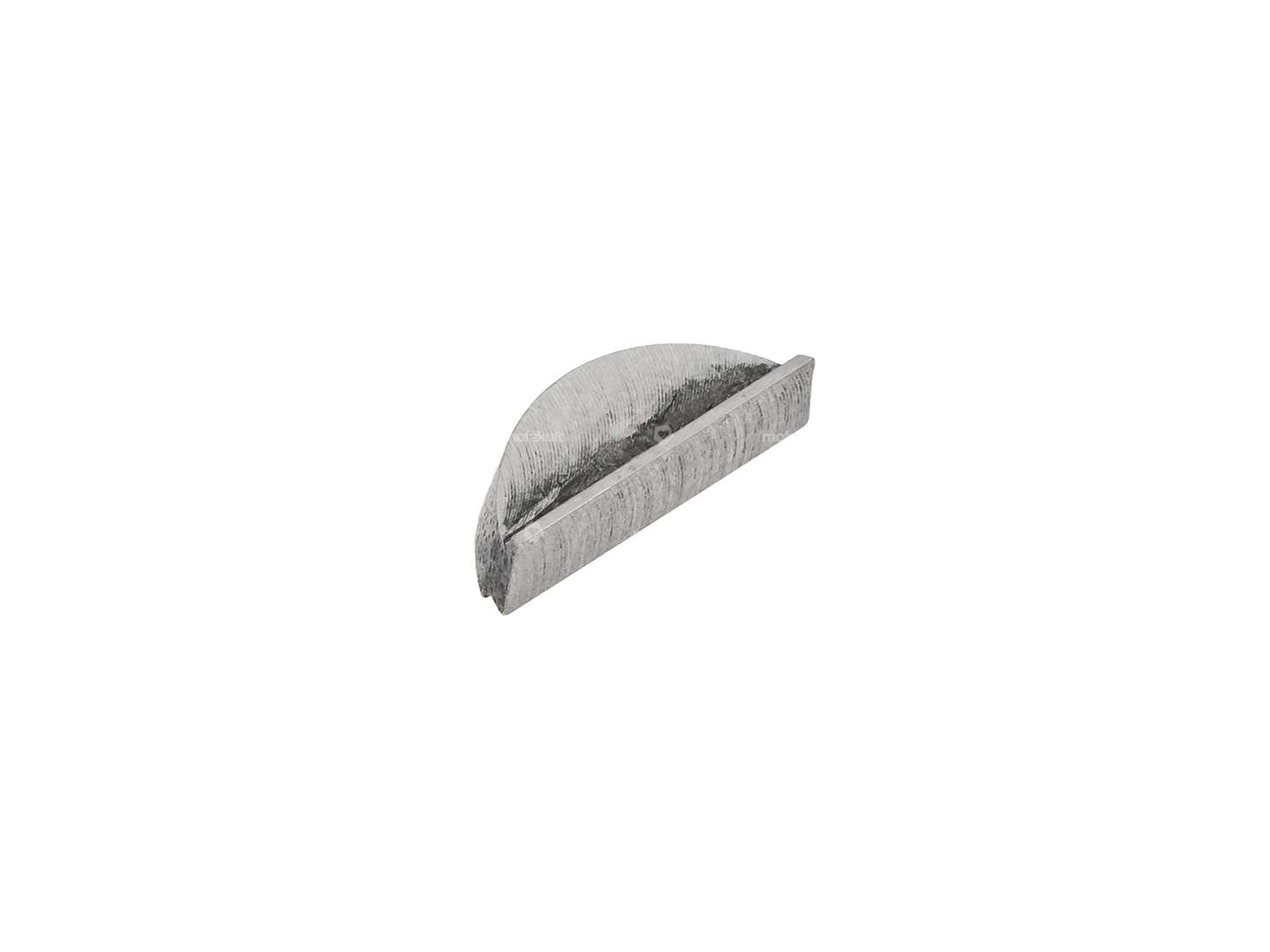

Adjustment key for the crankshaft of all Piaggio Ciao, Si, Bravo, Boxer mopeds / mopeds to position the flywheel.
With this Woodruff key, a frictional ignition is achieved without having to adjust the ignition.
The key with 1.0 mm offset is placed in the crankshaft keyway instead of the original Woodruff key.
The shoulder must be installed in a clockwise direction.
Length: 12.4 mm
Height: 4.9 mm
Width: 3 mm
Offset: 1 mm
Details
| Offset | 1 mm |
| Material | Steel |
| Total length | 12.4 mm |
| Width | 3 mm |
| Height | 4.9 mm |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
