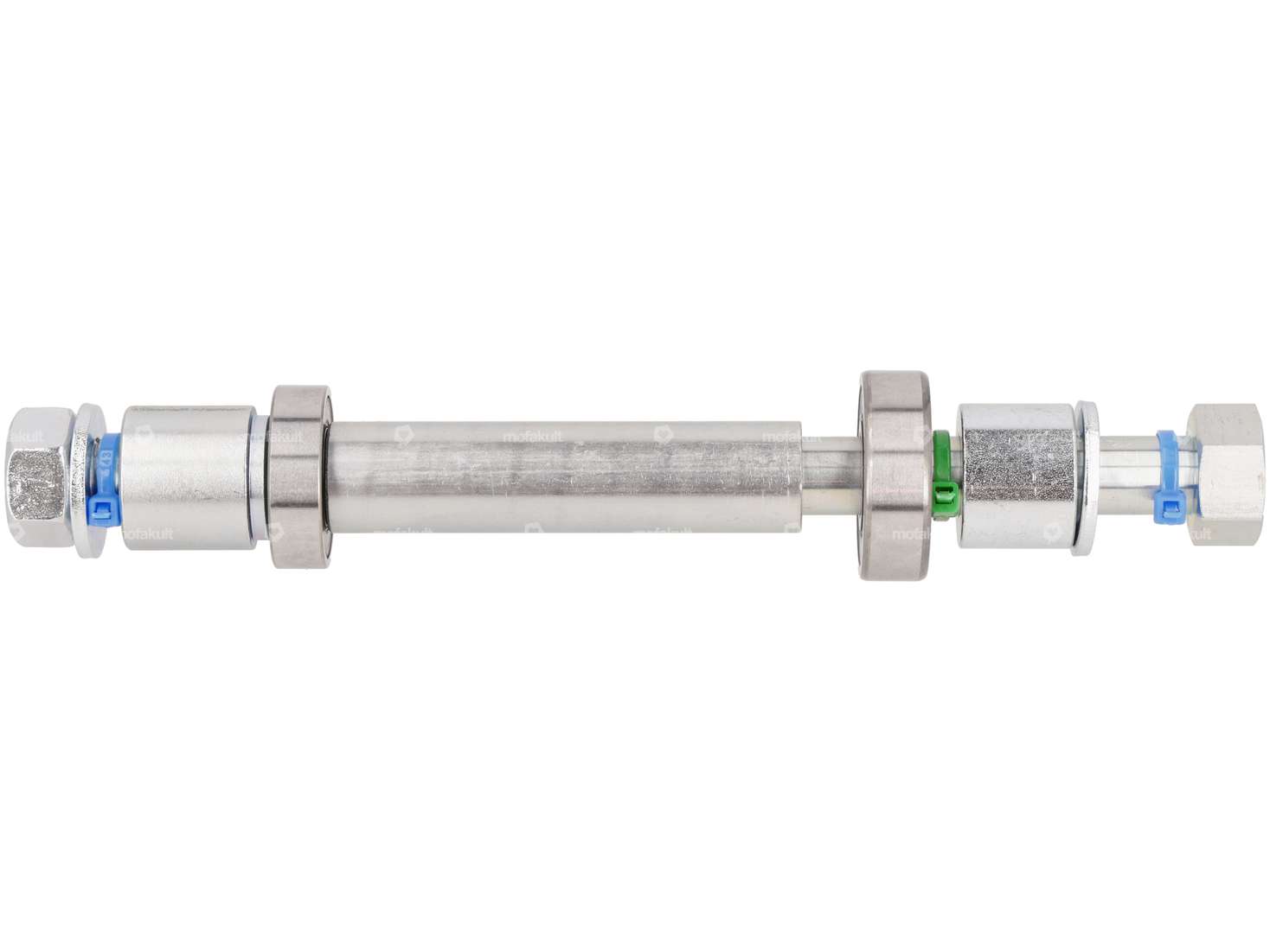

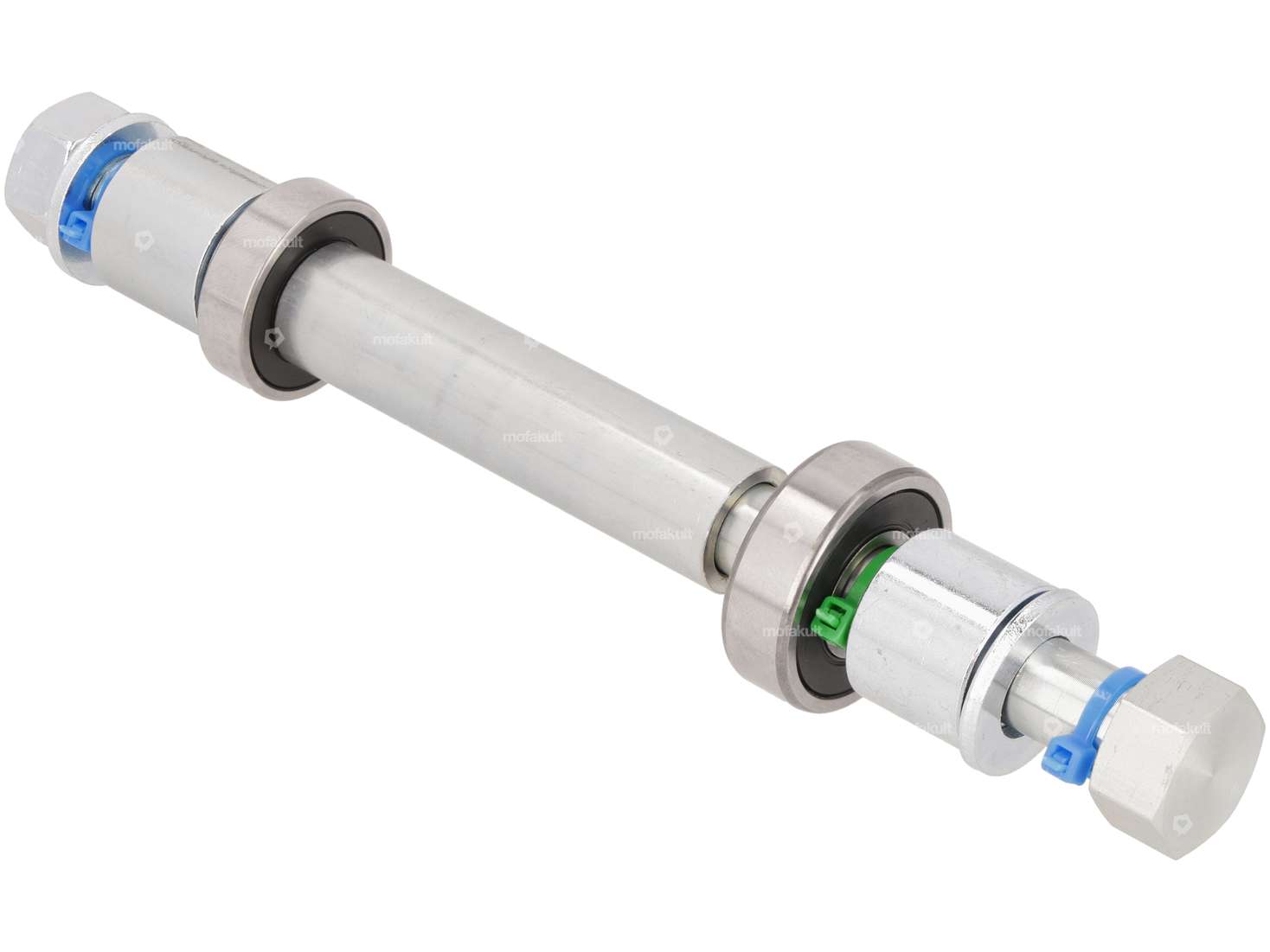

swiing® revival rear wheel axle set | Pony Cross 521

Washer M12 small galvanized

Material: Steel · Surface: galvanized (blue) · Thread size: M12 · Ø outside: 24 mm · Nominal diameter (thread): 12 mm · Ø inside: 13 mm · Thickness: 2.5 mm

Brake anchor plate rear wheel Grimeca | Pony Cross (P8359)

Manufacturer: Pony · Ø External brake pads: 90 mm

Bearing cup rear wheel Grimeca | Pony GTX 521, Cross 521 / Cilo 521

Manufacturer: Pony · Material: Steel · Ø outside: 30 mm · Ø inside: 27.85 mm · Height: 13.05 mm

GPO wheel clamp 12 mm cranked reinforced (per piece)

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Thread length: 35 mm · Total length: 75 mm · Thread type: M6x1 (standard thread) · Ø outside: 23.7 mm · Ø inside: 13.1 mm · Cranking (offset): 6 mm

Spacer sleeve 12.2/22/17 rear wheel axle | Pony Cross Beta 521 (P8380)

Manufacturer: Pony · Material: Steel · Surface: galvanized (blue) · Ø inside: 12.2 mm · Nominal diameter inside: 12 mm · Ø outside: 22 mm · Total length: 17 mm

Spacer sleeve rear wheel axle 12.2/22(19)/22 mm | Pony Cross Beta 521 (P8379)

Manufacturer: Pony · Material: Steel · Surface: galvanized (blue) · Ø inside: 12.2 mm · Nominal diameter inside: 12 mm · Ø outside: 22 mm · Ø Bundle: 19 mm · Total length: 22 mm

Spacer sleeve 12.2/17/71.6 rear wheel axle | Pony Cross Beta 521 (P8381)

Manufacturer: Pony · Material: Steel · Surface: galvanized (blue) · Ø inside: 12.2 mm · Nominal diameter inside: 12 mm · Ø outside: 17 mm · Total length: 71.6 mm

Wheel axle M12x1.25 x 190 rear wheel | Pony Cross Beta 521 (P8358)

Manufacturer: Pony · Material: Steel · Surface: galvanized (blue) · Ø shaft: 11.95 mm · Shank length: 160 mm · Thread type: MF12x1.25 (fine pitch thread) · Thread length: 18 mm · Total length: 188 mm · Width across flats SW: 19 mm

Nut M12x1.25 fine thread galvanized

Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut · Thread type: MF12x1.25 (fine pitch thread) · Height: 10 mm · Drive: External hexagon · Width across flats SW: 19 mm · Strength class: 8

SKF 6001 2RSH Ball bearing 12/28/8

Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 8 mm · Manufacturer: SKF · Dust protection type: 2RSH - NBR contact seal on both sides · Bearing clearance: CN (standard) · Bearing type: Deep groove ball bearing · Width: 8 mm · Ø inside: 12 mm · Ø outside: 28 mm · Stock number: 6001 · Ball bearing closed: Yes

SKF 6201 2RSH ball bearing 12/32/10

Bearing type: Deep groove ball bearing · Stock number: 6201 · Ø inside: 12 mm · Ø outside: 32 mm · Width: 10 mm · Inner ring width: 10 mm · Manufacturer: SKF · Ball bearing closed: Yes · Dust protection type: 2RSH - NBR contact seal on both sides · Bearing clearance: CN (standard) · Bearing cage: "-" Sheet steel cage ball-guided

swiing® revival front wheel axle set | Pony Cross 521

Manufacturer: swiing® revival parts · Total length: 154 mm · Material: Chrome steel (known as Nirosta®) · Material: Steel · Surface: galvanized (blue) · Thread type: MF11x1 (fine pitch thread) · Ø shaft: 10.25 mm · Shank length: 27 mm · Ball bearing closed: No · Thread length: 63 mm · Ø ball [inch] / [mm]: 1/4" (6.35 mm)

Woodruff key 3 x 3.7 mm

Material: Steel · Width: 3 mm · Total length: 9.15 mm · Height: 3.7 mm

Clutch cable / brake cable Ø 1.5 mm x 225 cm (pear-shaped nipple)

Ø nipple: 3.5 mm · Ø nipple: 6 mm · Nipple length: 10 mm · Manufacturer: Made in Germany · Number of components: 1 pcs · Material: Steel · Surface: galvanized (blue) · Ø Stranded wire: 1.5 mm · Nipple shape: Pears · Area of application: Standard · Cable length: 2250 mm · Piaggio OEM number: 270460

swiing® revival clamp brake cable | Pony / Cilo (P8343)

Manufacturer: swiing® revival parts · Number of components: 3 pcs · Material: Steel · Surface: galvanized (blue) · Ø Cable bushing: 2.9 mm · Thread length: 9 mm · Total length: 17 mm · Screw head: Hexagon · Thread type: M6x1 (standard thread) · Ø shaft: 8.5 mm · Drive: External hexagon · Ø outside: 12 mm · Width across flats SW: 10 mm

ESJOT sprocket 45 teeth 4/5/6 hole Ø 98 mm cranked black

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: ESJOT · Material: Steel · Surface: powder-coated · Color: black · Number of teeth: 45 pcs · Ø inside: 98 mm · Number of fixing points: 4 pcs · Number of fixing points: 5 pcs · Number of fixing points: 6 pcs · Ø mounting hole: 6.7 mm · Ø bolt circle: 115 mm · Thickness: 4.5 mm · Cranking (offset): 12 mm

Fuel tap vertical M10x1 (to screw in) outgoing at the bottom / cast iron

Manufacturer: Made in Italy · Possible lever positions: open / closed / reserve · Thread type: MF10x1 (fine pitch thread) · Material lever: Metal · Filter type: Plastic net · Mounting type: screw in (thread) · Installation direction: vertical / vertical · Outlet direction: below · Spare tube shape: straight · Ø fuel hose connection: 6 mm · Reserve level: 65 mm

ESJOT sprocket 12 teeth | Beta 521 & 512 (A8311)

Manufacturer: ESJOT · Material: Steel · Surface: varnished · Chain type: 415H · Recording type: Cone mounting · Chain pitch: 1/2" x 3/16" · Thread type: MF24x1.5 (fine pitch thread) · Number of teeth: 12 pcs · Total thickness: 13 mm · Ø inside: 14.6 mm · Thickness: 4.4 mm

Wedge pinion / flywheel Beta 521 & 512 (A8046)

Manufacturer: Pony · Material: Steel · Width: 3 mm · Total length: 9.3 mm · Height: 3.8 mm

Exhaust gasket exhaust | Beta 521 & 512 (A8099)

Manufacturer: Pony · Place of use: Exhaust · Material: Sealing carton · Material: Sheet metal (steel) · Reinforced: Yes · Ø screw holder: 6 mm · Ø inside: 21.8 mm · Area of application: Standard · Thickness: 1.7 mm

swiing® ingenious bearing conversion kit front wheel | Pony GTX 521, Cross 521

Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: anodized · Ø inside: 11.25 mm · Ball bearing closed: Yes
