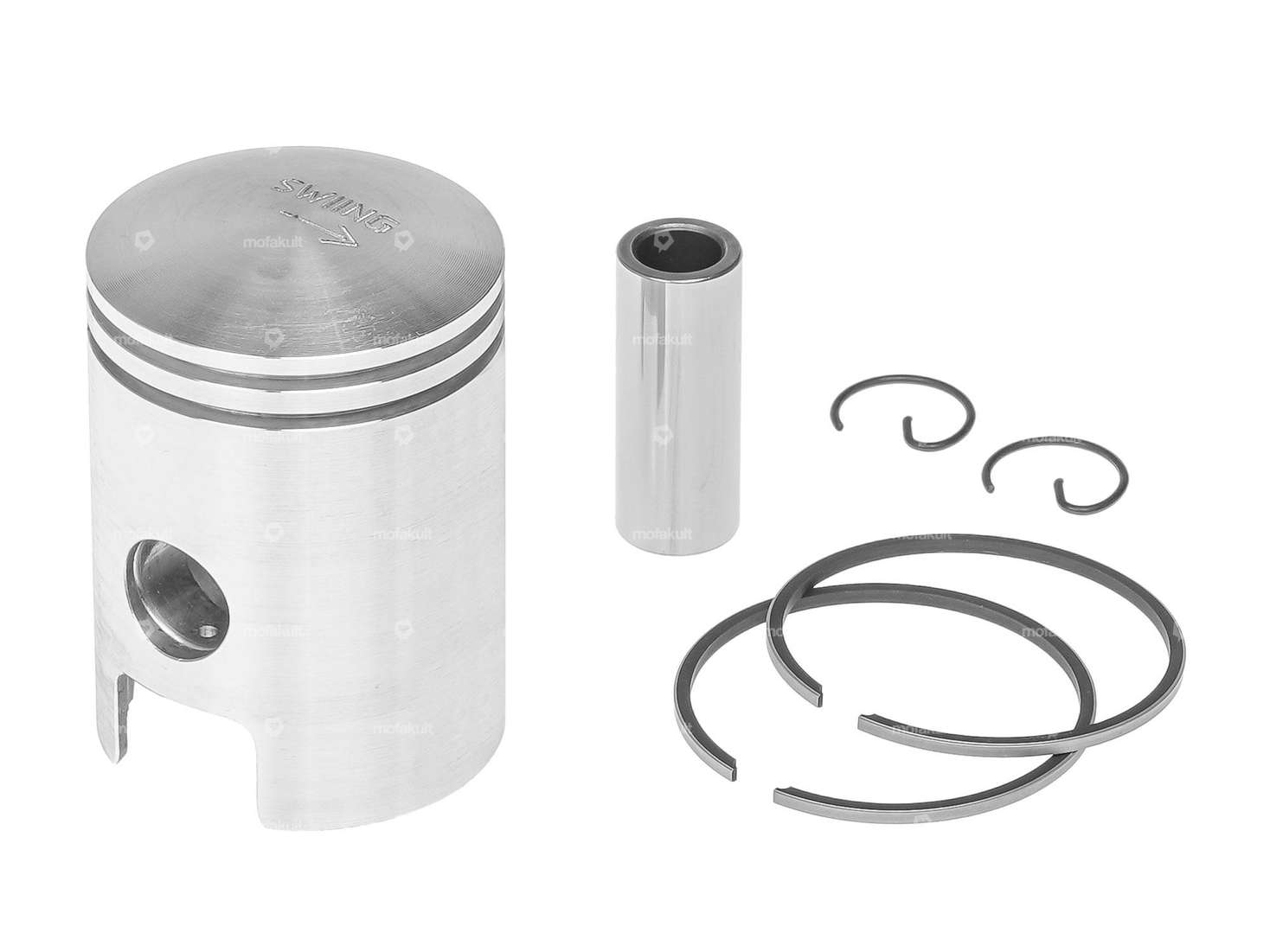

38.0 mm piston kit with two 1.5 mm rectangular piston rings with internal fuse (IS) for swiing aluminum cylinder for Sachs 503 mopeds / mopeds.

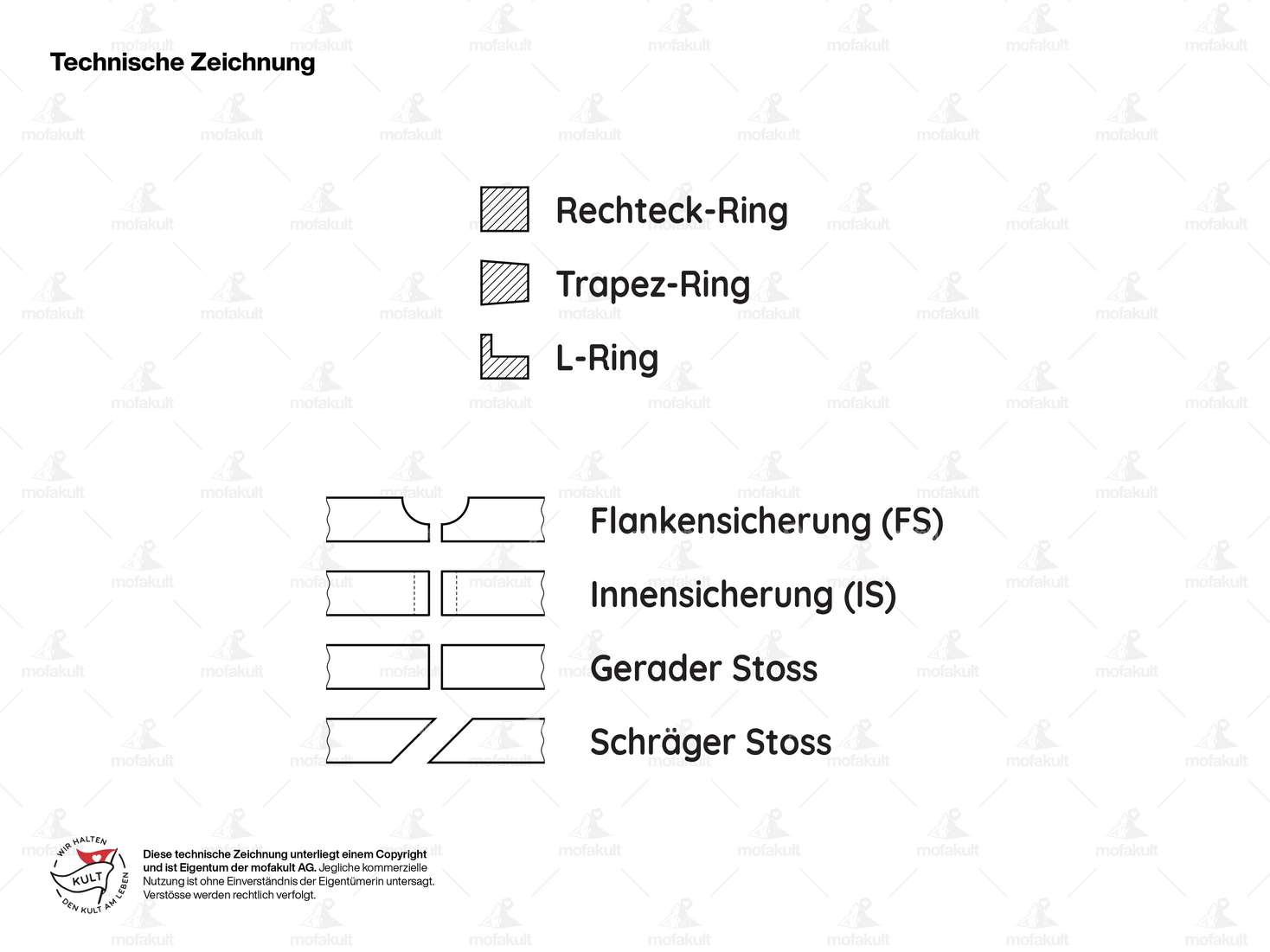

The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their positions and locking types on the legend in the pictures.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories.
Nostalgic product for the highest demands of the quality brand swiing®.
Details
| Nominal diameter | 38 mm |
| Manufacturer | swiing® revival parts |
| Ø outside piston (A) | 37.97 mm |
| Compression height (C) | 28 mm |
| Curvature (D) | 3.6 mm |
| Total piston height (E) | 54.1 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Ø piston pin (B) | 12 mm |
| Piston weight | 73 g |
Suitable for the following models
| Sachs | 503 - AAL, ABL, 2AL / 2BL |
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Manufacturer: GPO · Number of components: 7 pcs · Material: Steel · Surface: burnished · Total length: 130 mm · Area of application: (Dis)assembly tool · Width across flats SW: 10 mm · Width across flats SW: 17 mm
EUR 22.40
swiing® ingenious tuning cylinder 38 mm | Sachs 503
Nominal diameter: 38 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 42 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 / 37 x 37 · Decompressor: No · Camouflaged: No · Area of application: Tuning
EUR 185.60
Not in stock
