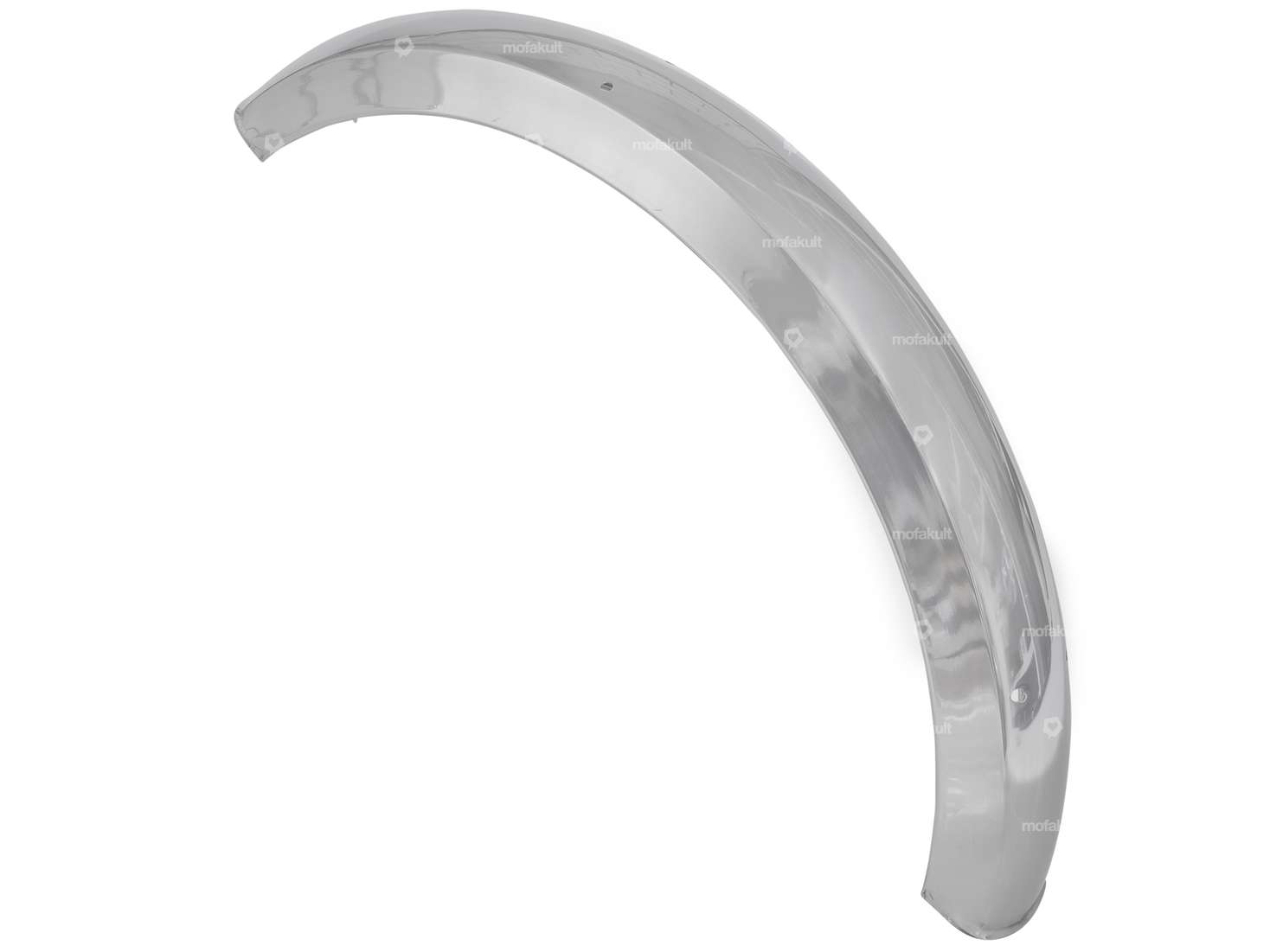

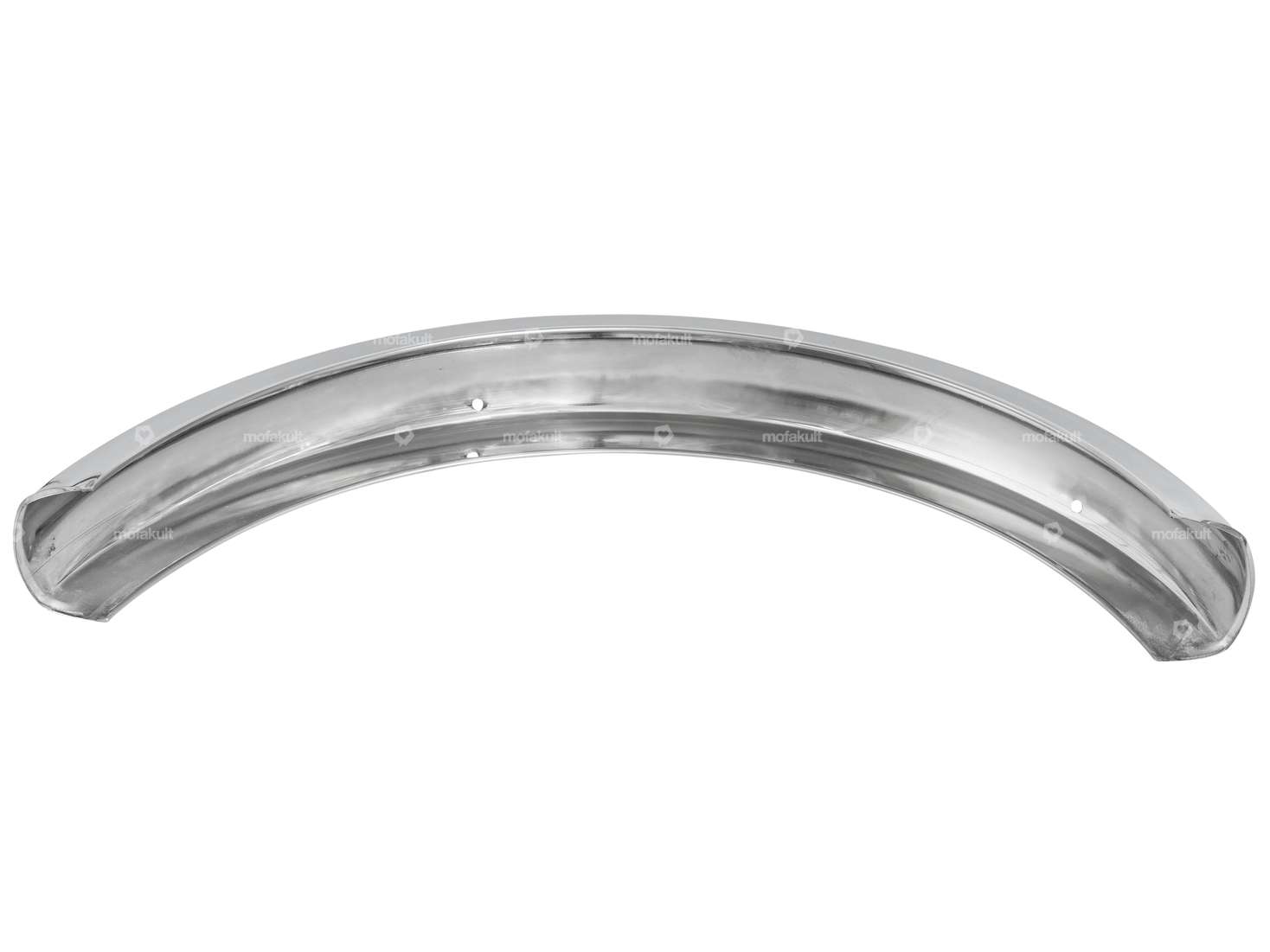

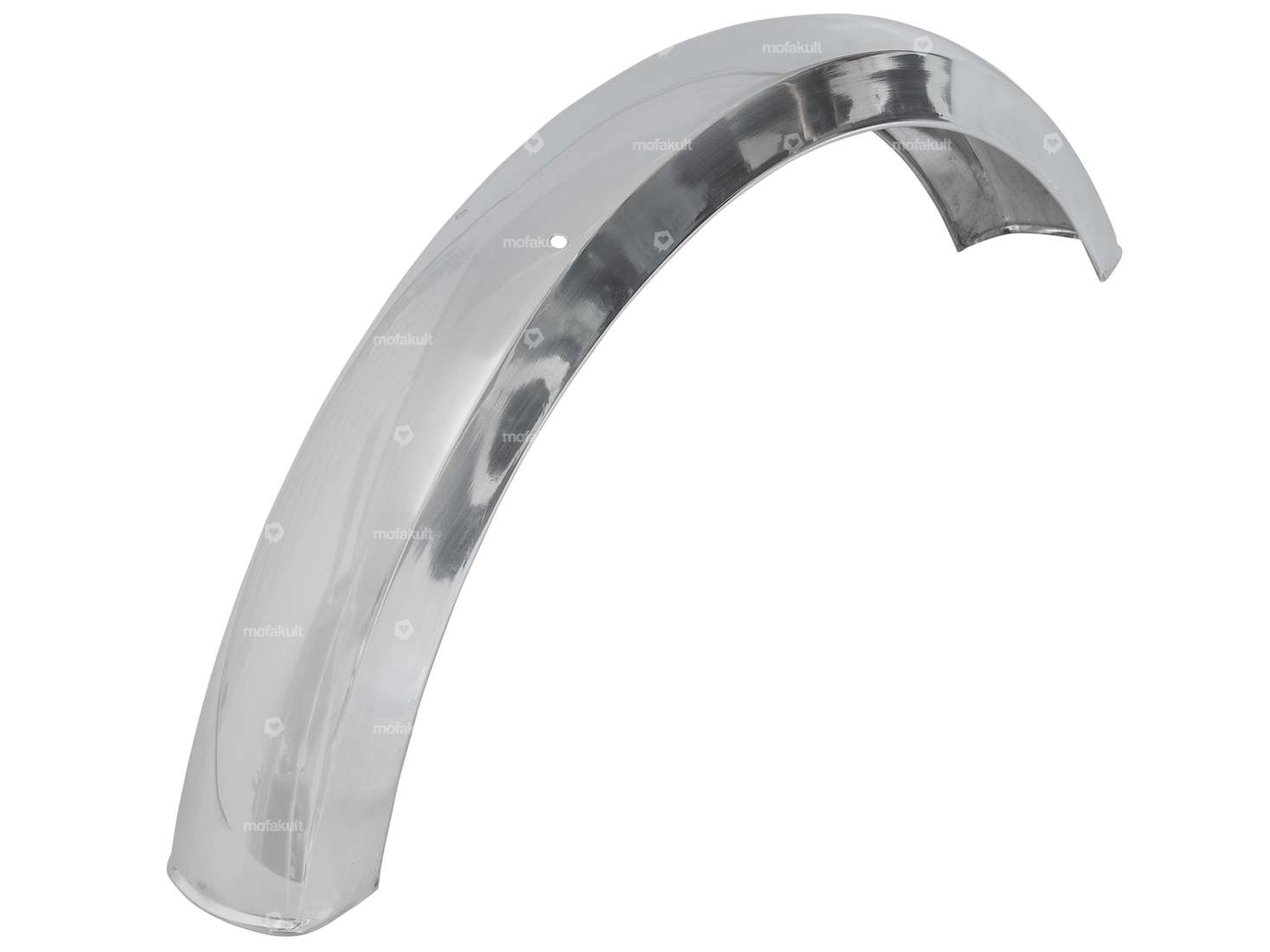

Front mudguard made of stainless steel for your Tomos Quadro, Sprint and Classic moped with 16" rims.
The highly polished surface ensures a first-class look and gives your moped the necessary shine.
For mounting the lower and upper mudguard struts, all original holes are provided on the mudguard.
The option of using an edge protector or splash guard flap is also available. Corresponding holes must be drilled if required.
Shape: part-round
Width of mudguard profile (A): 75 mm
Height of mudguard profile (B): 40 mm
End: folded open on both sides
Material: chrome steel (stainless steel), highly polished
Total height from support surface to top edge (C): 205 mm
Total length over ends (D): 570 mm
Circumference (E): 750 mm
Further parts for your wheel fairing, such as stainless steel polish or fastening material, can be found in the accessories section.
Nostalgic product for the highest demands of the quality brand swiing®.
Details
| Manufacturer | swiing® revival parts |
| Material | Chrome steel (known as Nirosta®) |
| Surface | polished |
| Color | Chrome |
| Folding the ends | open folded |
| Shape of the mudguard | partly round |
| Total length over ends | 570 mm |
| Scope | 750 mm |
| Wide mudguard profile | 75 mm |
| Height of mudguard profile | 40 mm |
| Total height from support surface to top edge | 205 mm |
| Wheel size [inch] | 16 " |
| Mounting type | Nuts & bolts |
| Tomos OEM number | 242280LAK |
