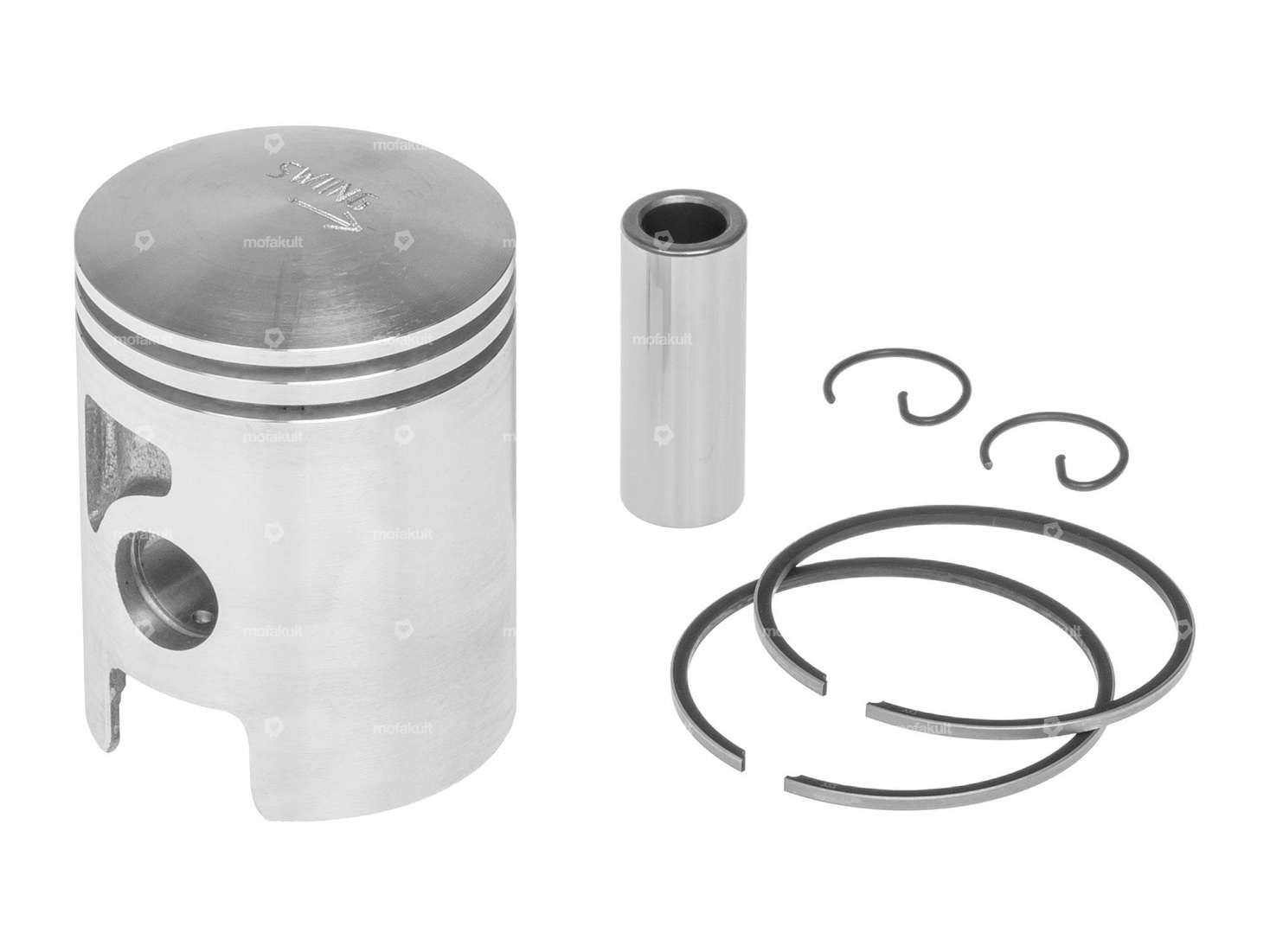

40.0 mm piston with two rectangular piston rings with internal locking (IS) suitable for the swiing racing cylinder made of aluminum for Sachs 503 mopeds / mopeds.
The inner surfaces of the piston have been milled flat for optimum guiding of the connecting rod. The two hard chrome-plated piston rings have a positive effect on the service life.
The piston also has two holes for optimum lubrication of the piston pin.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their positions and locking types on the legend in the pictures.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories.
Exceptional product for the highest demands of the quality brand swiing®.
Details
| Nominal diameter | 40 mm |
| Manufacturer | swiing® ingenious parts |
| Ø outside piston (A) | 39.97 mm |
| Compression height (C) | 28 mm |
| Curvature (D) | 3.5 mm |
| Total piston height (E) | 54 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Thick piston ring | 1.7 mm |
| Ø piston pin (B) | 12 mm |
| Piston weight | 83 g |
Suitable for the following models
| Sachs | 503 - AAL, ABL, 2AL / 2BL |
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Area of application: (Dis)assembly tool · Material: Steel · Surface: burnished · Number of components: 7 pcs · Total length: 130 mm · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Width across flats SW: 10 mm · Width across flats SW: 17 mm
EUR 22.40
swiing® ingenious tuning cylinder 40 mm | Sachs 503
Nominal diameter: 40 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 / 37 x 37 · Decompressor: No · Camouflaged: No · Area of application: Tuning
EUR 191.30
Not in stock
Moped fans like you also bought:
BERU spark plug connector / 1 kΩ interference suppressed
Manufacturer: BERU · Material: Sheet metal (steel) · Color: silver · Ø cable: 5 mm · Ø cable: 7 mm · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Resistance: 1000 Ω · Component group Carburetor: Spraying · Pony OEM number: A2099 · Sachs OEM no.: 0265 100 00
EUR 9.85
ESJOT drive chain 415H (reinforced) 114L (1A quality)
Manufacturer: ESJOT · Material: Steel · Surface: blank / oiled · Chain pitch: 1/2" x 3/16" · Chain type: 415H · Rolling circumference: 1448 mm · Number of chain links: 114 pcs · Chain lock type: Spring lock · Ø bore: 4.05 mm · Ø Pin: 4 mm · Color: gray
EUR 21.30
NSK 6201 ball bearing 12/32/10
Bearing type: Shoulder bearing · Stock number: 6201 · Ø inside: 12 mm · Ø outside: 32 mm · Width: 10 mm · Inner ring width: 10 mm · Manufacturer: NSK · Ball bearing closed: No · Bearing clearance: CM (special/noise-reduced) · Bearing cage: "-" Sheet steel cage ball-guided · Groove ring: No · Material: Steel · Surface: blank · Area of application: Standard
EUR 9.55
Magura cable clamp Ø 8 x 9
Manufacturer: Magura · Material: Steel · Surface: chrome-plated · Surface: galvanized (blue) · Ø outside: 8 mm · Total length: 9 mm · Drive: External hexagon · Drive: Slot · Screw head: Hexagon · Width across flats SW: 7 mm · Thread type: M4x0.7 (standard thread) · Thread length: 5 mm · Ø Cable bushing: 2.5 mm · Number of components: 1 pcs · Area of application: Standard
EUR 2.25
