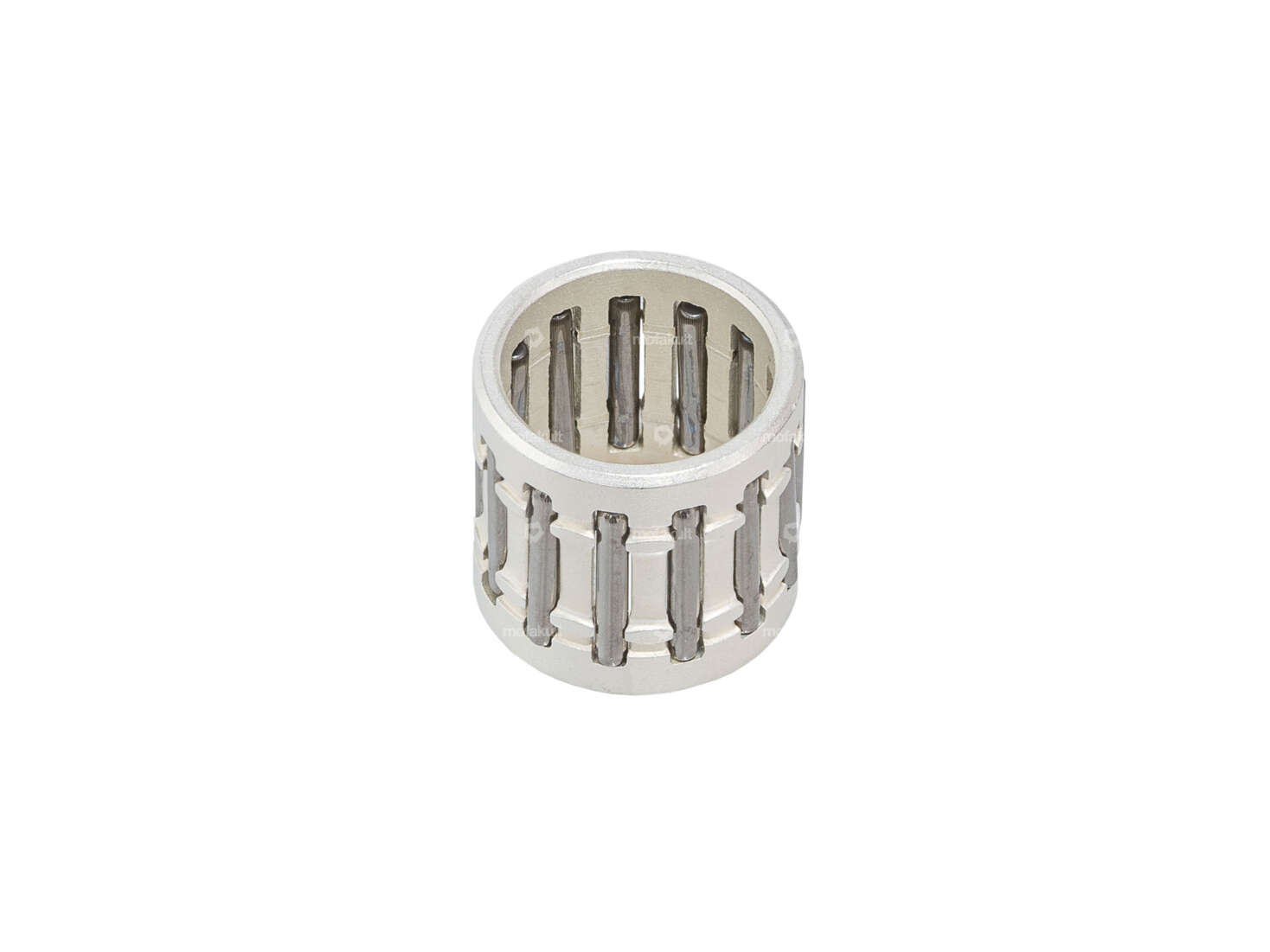

Pin ring for various crankshafts of mopeds / mopeds without sliding bushes / connecting rod bushes such as Sachs 503, Beta 521, Sachs 504, Puch Maxi S/N, Puch X30 NS/NL, Puch Supermaxi LG1/LG2, Zündapp Belmondo etc.
The rollers are embedded in a silver bearing race. The silver-plated bearing housing has the following advantages:
- Ölfilm adheres better to the surface
- Better heat dissipation
- Lower wear properties
Mass:
- Ø inner: 12 mm
- Ø outer: 15 mm
- Width: 14.2 mm
Note: For crankshafts where a connecting rod bushing is originally installed, a needle roller bearing cannot be used retroactively.
Exclusive product for the highest demands of the quality brand swiing®.
Details
| Width | 14.2 mm |
| Bearing cage | Silver cage |
| Manufacturer | swiing® ingenious parts |
| Ø inside | 12 mm |
| Bearing type | Needle roller and cage assembly |
| Ø outside | 15 mm |
| Dimension needle bearing | 12/15 x 14.2 |
| Alternative version of the Pony OEM number | A4222 |
| Alternative version of the Sachs OEM number | 0232 157 001 |
| Tomos OEM number | 035548 |
Suitable for the following models
| Universal | |
| Puch | E50 ZA50 (air-cooled) ZA50 (fan-cooled) Z50 (X30 Sport) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) 50/2 50/3 50/4 503 504 (without pedal shaft) 505 (with pedal shaft) 508 535 |
| Pony / Cilo (Beta 521 & 512) | Beta 512 Beta various Beta 521 (engine) |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
| Zündapp Belmondo | |
| Solex | |
| Tomos | |
| Bye Bike | |
| Alpa Chopper / Turbo |
| Cilo | |
| DKW | |
| Fantic | Issimo |
| Garelli | |
| Honda | |
| ILO / JLO | |
| Kreidler | Flory MF Foil |
| Malaguti | |
| MBK | |
| Miele | |
| Monark | |
| Peugeot | |
| Victoria | |
| Yamaha | |
| Zündapp | 434 Chassis (mountaineer) 278 Motor |
