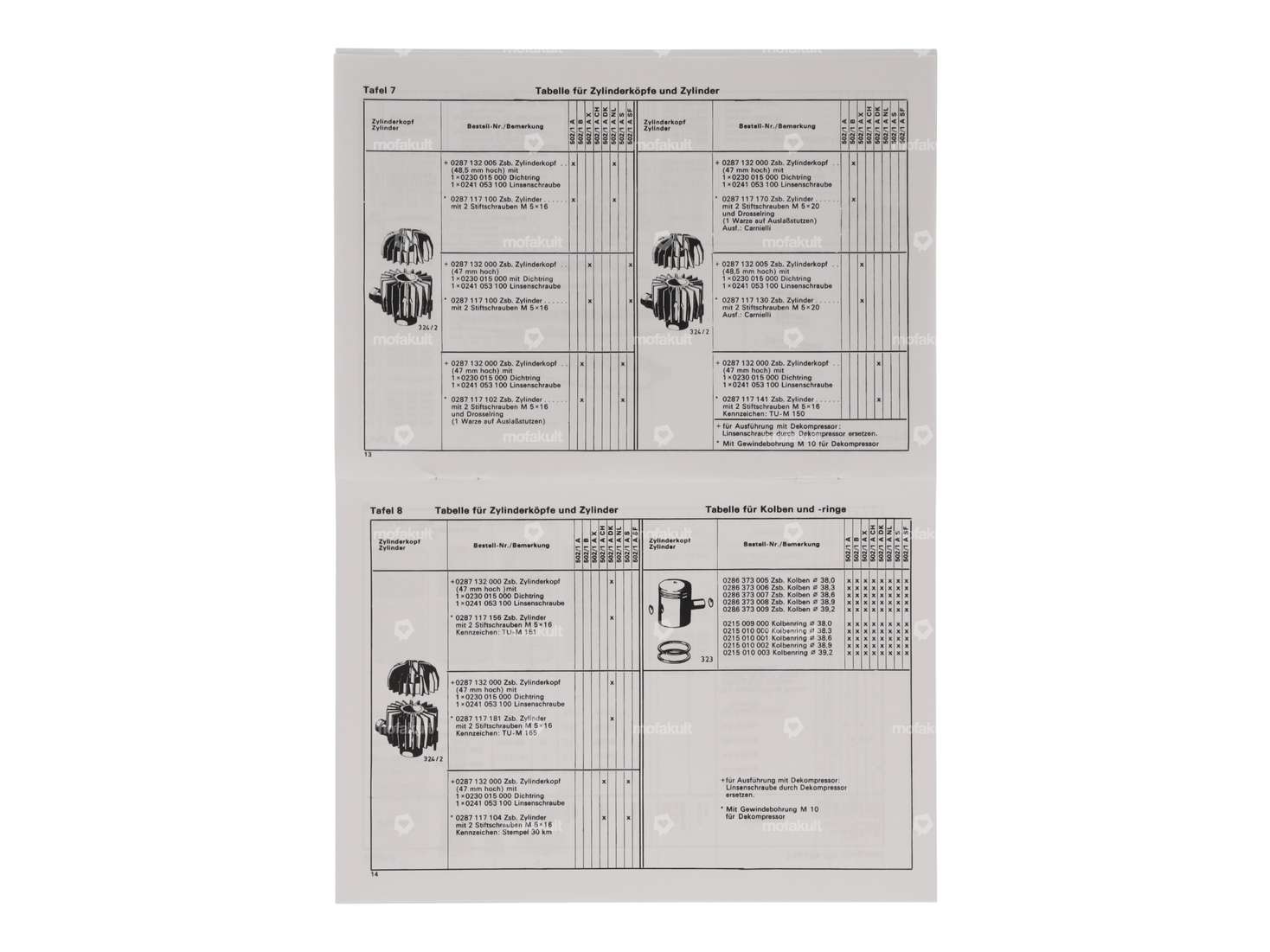

Spare parts list no. 3029.6/3 | Sachs 502/1 A, B

Repair instructions | Sachs 502 (50/2 MLC, 50/AMLC)

Material: Paper · DIN format: A5 · Number of pages: 70 pcs · Language: German

Repair instructions | Sachs 50 three-speed

Material: Paper · DIN format: A5 · Number of pages: 32 pcs · Language: German

Repair instructions | Sachs 50 Zweigang (50/2)

Material: Paper · DIN format: A5 · Number of pages: 32 pcs · Language: German

Repair instructions | Sachs 50/3 LFH, MLFB, 50/4 LKH, LKS, MLFB, MLKAX

Material: Paper · DIN format: A5 · Number of pages: 63 pcs · Language: German

Repair instructions | Sachs 501/4 A KF, 501/3 B KF, 501/4 KF

Material: Paper · DIN format: A5 · Number of pages: 57 pcs · Language: German

Ignition cable Ø 5 x 450 mm (original)

Material: Copper · Material: Plastic · Color: black · Ø cable: 5 mm · Total length: 450 mm · Suppressed: No · Component group Carburetor: Carburetor complete

Motorex engine oil (gear oil) manual 450 ml

Temperature resistance (min.): -30 - 220 °C · Manufacturer: Motorex · Viscosity (SAE): 80W · Oil type: GL4 · Contents [ml]: 450 ml · Gearbox type: Foot control · Gearbox type: Manual gearshift · Area of application: Gearbox lubrication with clutch

NSK E15 shoulder ball bearing 15/35/8 (A1149)

Bearing cage: Brass cage ball-guided · Inner ring width: 8 mm · Manufacturer: NSK · Bearing clearance: CN (standard) · Groove ring: No · Material: Brass · Material: Steel · Surface: blank · Bearing type: Shoulder bearing · Width: 8 mm · Stock number: E15 · Ø outside: 35 mm · Ø inside: 15 mm · Area of application: Standard · Ball bearing closed: No · Sachs OEM no.: 0232 017 006 · Pony OEM number: A1149

swiing® revival clutch spring | Sachs 50/2 & 503 (A1325)

Spring design: Pressure spring · Manufacturer: swiing® revival parts · Pony OEM number: A1325 · Sachs OEM no.: 0239 015 000

swiing oil drain plug M10x1 | Sachs 50/2, 503 2AL/2BL, 504/2 (A1470)

Manufacturer: swiing · Material: Steel · Surface: burnished · Thread type: MF10x1 (fine pitch thread) · Screw head: Hexagon · Drive: External hexagon · Width across flats Screw: 14 mm · Pony OEM number: A1470 · Sachs OEM no.: 0241 029 000

Outer ring 23.5/31.5/6 Main shaft left | Sachs 502, 50/2, 50/3, 50/4, 503 (A1157)

Material: Steel · Surface: hardened & ground · Ø inside: 23.5 mm · Ø outside: 31.5 mm · Width: 6 mm · Pony OEM number: A1157 · Sachs OEM no.: 0232 049 000

GPO flange gasket nozzle | Sachs 502, 50/2

Manufacturer: GPO · Material: Polyamide (PA) · Material: Sealing paper · Hole spacing inlet: 31 mm · Ø inside: 11.8 mm · Place of use: Admission · Thickness: 5 mm · Pony OEM number: A1823 · Sachs OEM no.: 0250 085 000

Nut M10x1 Inox

Material: Chrome steel (known as Nirosta®) · Nut type: Hexagon nut · Thread type: MF10x1 (fine pitch thread) · Drive: External hexagon

Inlet gasket 3.2 mm | Puch X30 Velux / Sachs

Place of use: Admission · Thickness: 3.2 mm · Hole spacing inlet: 32 mm

GPO sealing ring 12.8/19/2.4 shift/clutch lever (version 2.0) | Sachs 50/2, 503 A3844

Manufacturer: GPO · Material: Rubber · Ø inside: 12.8 mm · Ø outside: 19 mm · Thickness: 2.4 mm · Pony OEM number: A3844 · Sachs OEM no.: 0650 017 000
