For: Sachs

30438

Repair instructions Sachs 50 Saxonette (automatic)

Home
| Workshop & standard parts
| Miscellaneous
| Literature & Posters
EUR 34.00

Incl. 17% VAT.

Repair instructions for the Sachs 50 type Saxonette automatic engine from Fichtel & Sachs AG.

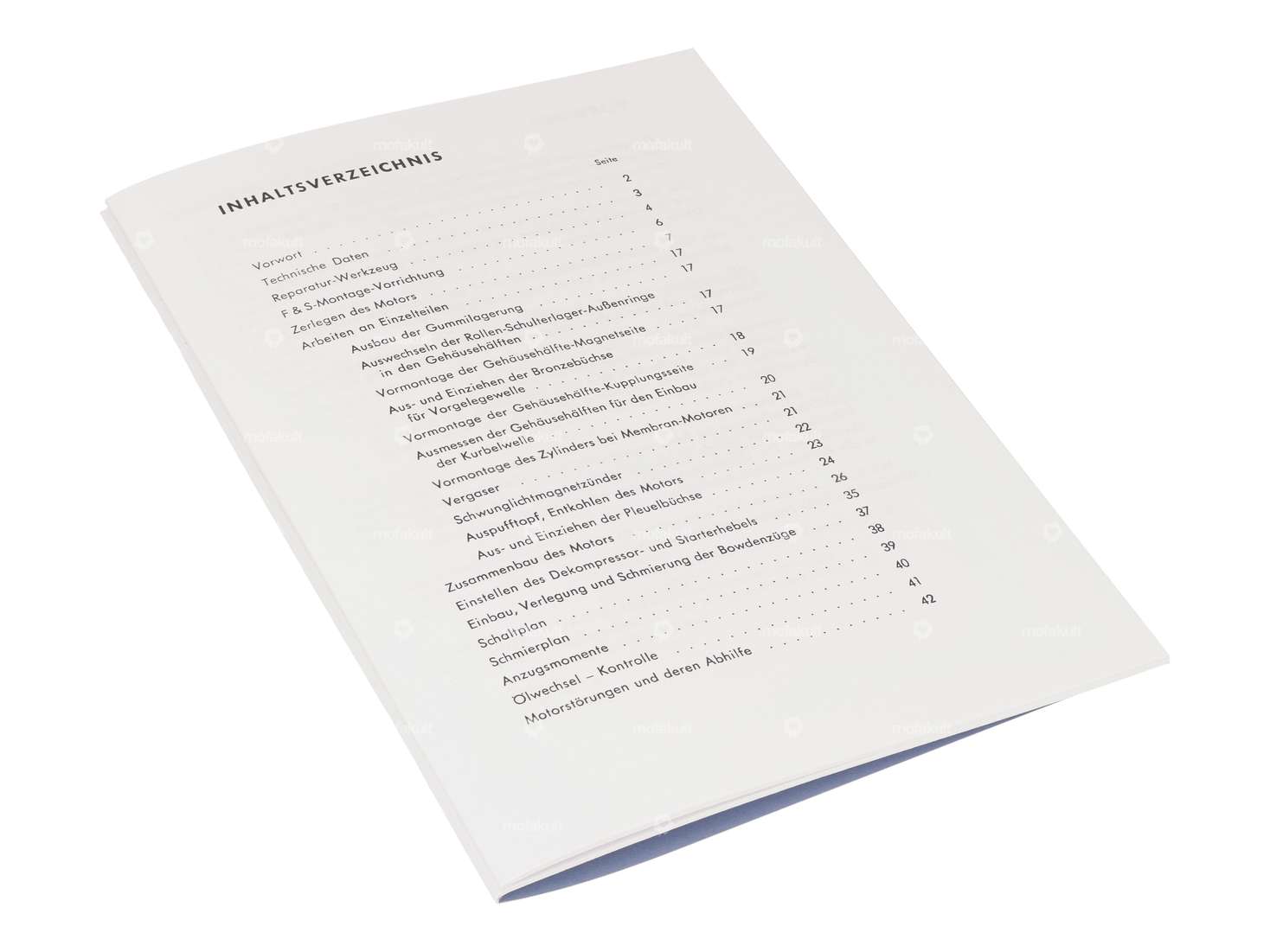

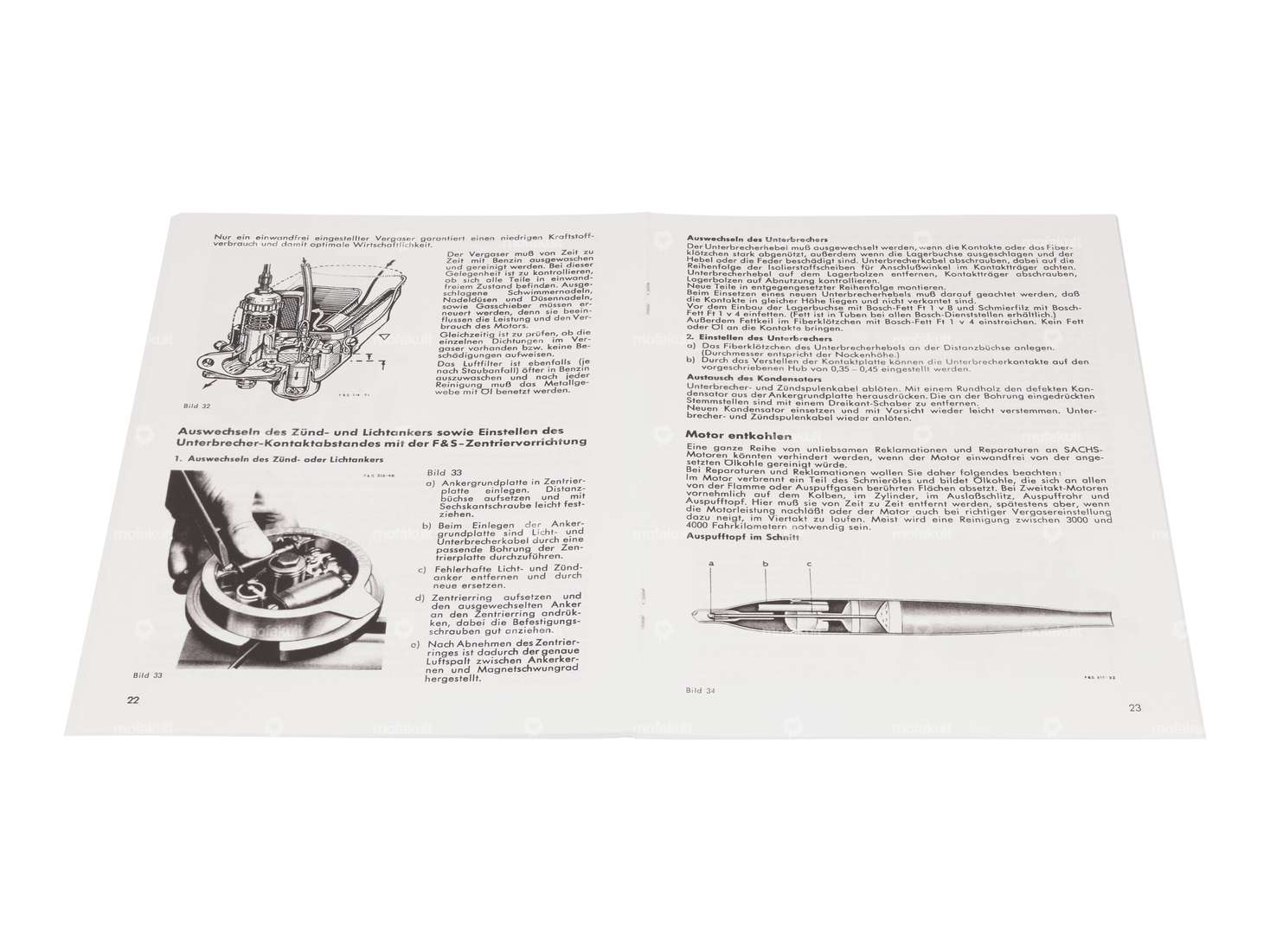

Very helpful, informative booklet. Among other things, it explains the operating elements, repair, maintenance and adjustment work. No workshop with Sachs mopeds should be without this detailed instruction manual.

Size: A5 (148 x 210 mm)
Pages: 44
Language: German

High-quality facsimile (reproduction) of the original edition.

Further workshop manuals, spare parts catalogs and repair manuals can be found in the accessories section.

Details

MaterialPaper
DIN formatA5
Width148 mm
Number of pages44 pcs
Height210 mm
LanguageGerman

Suitable for the following models

Sachs

502 (Saxonette) - AL, AML
