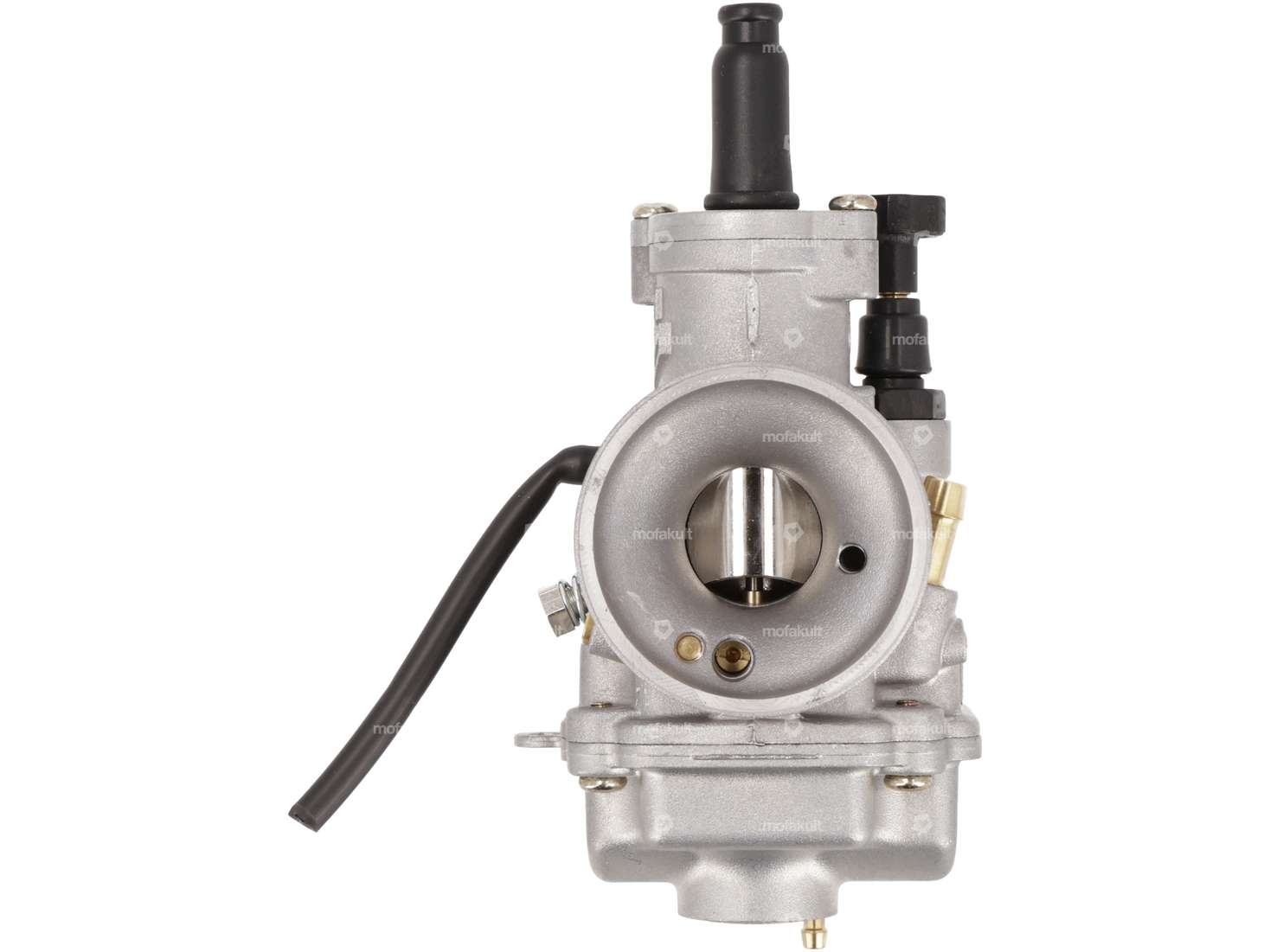

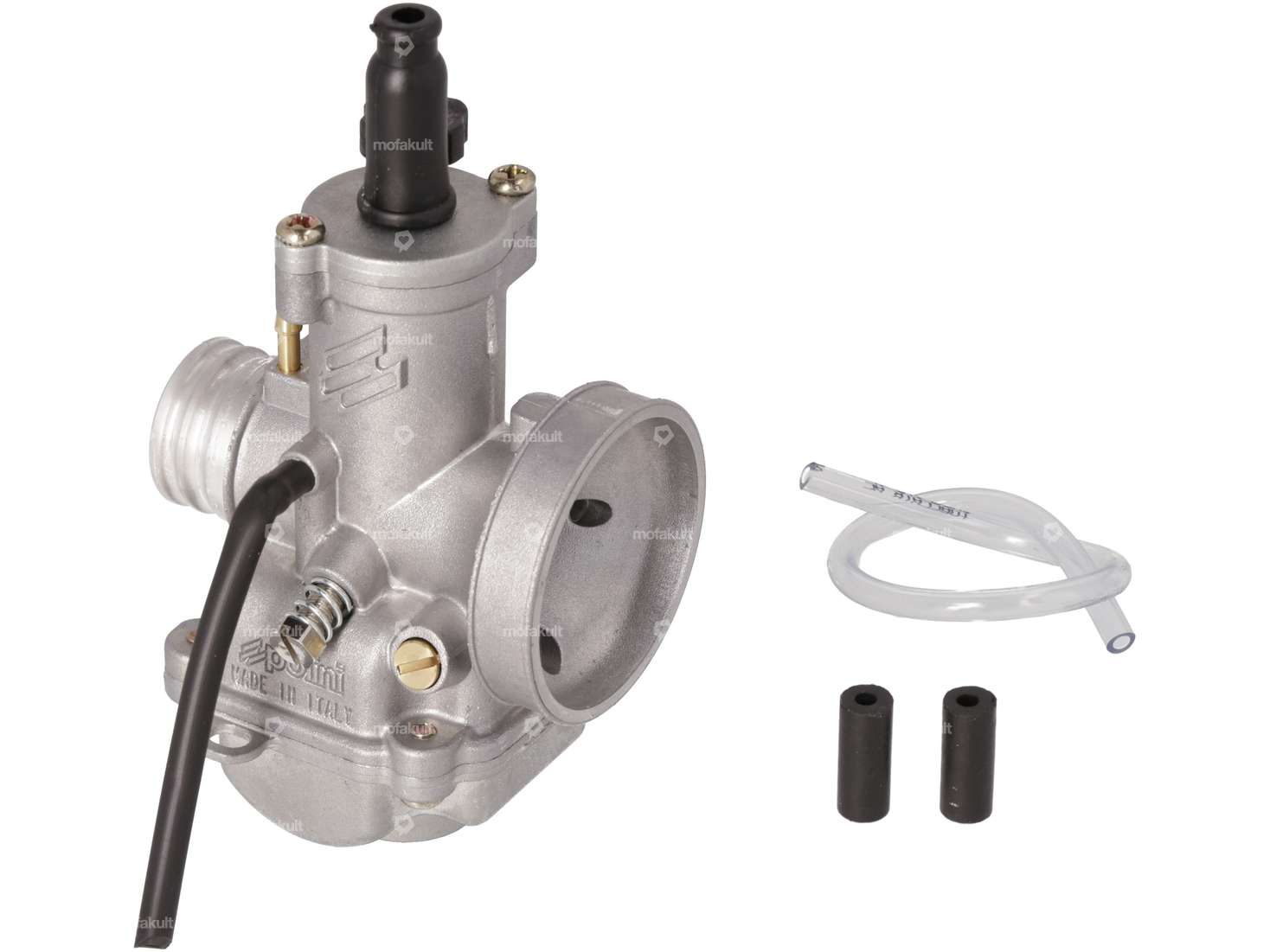

Polini CP 19 carburetor for your racing moped, moped and small motorcycle with the highest demands. The racing carburetor developed by Polini has a compact design and is around 40 % lighter than comparable carburetors. The air flow is optimized thanks to the short intake path and the circular passage. The larger needle and an adapted mixing tube support the atomization of the gas mixture. This makes it very easy to tune the carburetor. In addition, consumption is reduced even at high power levels.
Fastening to the intake manifold is by means of a rubber sleeve.
Installed main jet: 90
Installed secondary jet: 40
Ø Nominal: 19 mm
Ø Air filter connection: 46 mm
Ø Intake manifold connection: 25 mm
Alternative racing carburetors, the sleeve for installation and the matching nozzles can be found in the accessories section.
Quality product from the Italian manufacturer Polini.
Details
| Manufacturer | Polini |
| Camouflaged | No |
| Material | Aluminum |
| Component group Carburetor | Carburetor complete |
| Nominal diameter | 19 mm |
| Carburetor type | CP |
| Total length | 71 mm |
| Width | 66 mm |
| Height | 132 mm |
| Ø Inside entrance | 42 mm |
| Ø Output inside | 21.8 mm |
| Mounting type | Rubber sleeve |
| Ø Air filter connection | 47 mm |
| Ø fuel hose connection | 6 mm, 7 mm |
| Area of application | Tuning, Racing, Performance |
| Mixed oil connection | Yes |
| Vacuum connection | Yes |
| Choke control | Hand choke |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle block | 35-12 |
| Nozzle size | 90 |
| Size of secondary nozzle | 40 |
Accessories & related products
Polini CP 17.5 mm carburetor (hand choke)
Nominal diameter: 17.5 mm · Manufacturer: Polini · Component group Carburetor: Carburetor complete · Carburetor type: CP · Choke control: Hand choke · Area of application: Tuning · Ø fuel hose connection: 6 mm · Ø Internal connection: 24 mm · Ø without reducing sleeve: 26 mm · Mounting type: Plug connection clamped · Ø Air filter connection: 46 mm · Mixed oil connection: Yes · Vacuum connection: Yes · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 62 · Size of secondary nozzle: 40
EUR 159.00
Polini jet set (80 - 98) main jets long version CP, Keihin, Koso, PWK
Manufacturer: Polini · Material: Brass · Component group Carburetor: Spraying · Quantity: 10 pcs · Carburetor type: CP · Carburetor type: Coso · Carburetor type: Keihin · Carburetor type: PWK · Drive: External hexagon · Nozzle type: Main nozzle · Nozzle size: 54 · Nozzle size: 80 · Nozzle size: 82 · Nozzle size: 86 · Nozzle size: 88 · Nozzle size: 90 · Nozzle size: 92 · Nozzle size: 94 · Nozzle size: 96 · Nozzle size: 98
EUR 45.30
Polini jet set (81 - 99) main jets long version CP, Keihin, Koso, PWK
Manufacturer: Polini · Material: Brass · Component group Carburetor: Spraying · Quantity: 10 pcs · Drive: External hexagon · Carburetor type: CP · Carburetor type: Coso · Carburetor type: Keihin · Carburetor type: PWK · Nozzle type: Main nozzle · Nozzle size: 83 · Nozzle size: 85 · Nozzle size: 87 · Nozzle size: 89 · Nozzle size: 91 · Nozzle size: 93 · Nozzle size: 95 · Nozzle size: 97 · Nozzle size: 99
EUR 45.30
Polini 26 mm carburetor (hand choke)
Nominal diameter: 26 mm · Manufacturer: Polini · Material: Aluminum · Component group Carburetor: Carburetor complete · Area of application: Performance · Area of application: Racing · Area of application: Tuning · Width: 65 mm · Carburetor type: Flat slide valve · Height: 155 mm · Total length: 83 mm · Ø fuel hose connection: 6 mm · Ø fuel hose connection: 7 mm · Nozzle size: 105 · Ø Inside entrance: 26 mm · Ø Output inside: 26 mm · Ø Air filter connection: 49 mm · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Camouflaged: No · Size of secondary nozzle: 45
EUR 164.60
Polini CP 15 mm carburetor (hand choke) rubber flange
Manufacturer: Polini · Camouflaged: No · Component group Carburetor: Carburetor complete · Material: Aluminum · Carburetor type: CP · Nominal diameter: 15 mm · Ø Inside entrance: 42 mm · Ø Output inside: 21 mm · Ø Air filter connection: 47 mm · Ø fuel hose connection: 6 mm · Ø fuel hose connection: 7 mm · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle block: 35-12 · Nozzle size: 70 · Size of secondary nozzle: 36 · Mounting type: Rubber sleeve · Total length: 71 mm · Width: 66 mm · Height: 132 mm · Area of application: Performance · Area of application: Racing · Area of application: Tuning
EUR 153.30

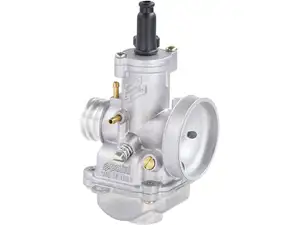

Polini CP 17.5 mm carburetor (hand choke) rubber flange
