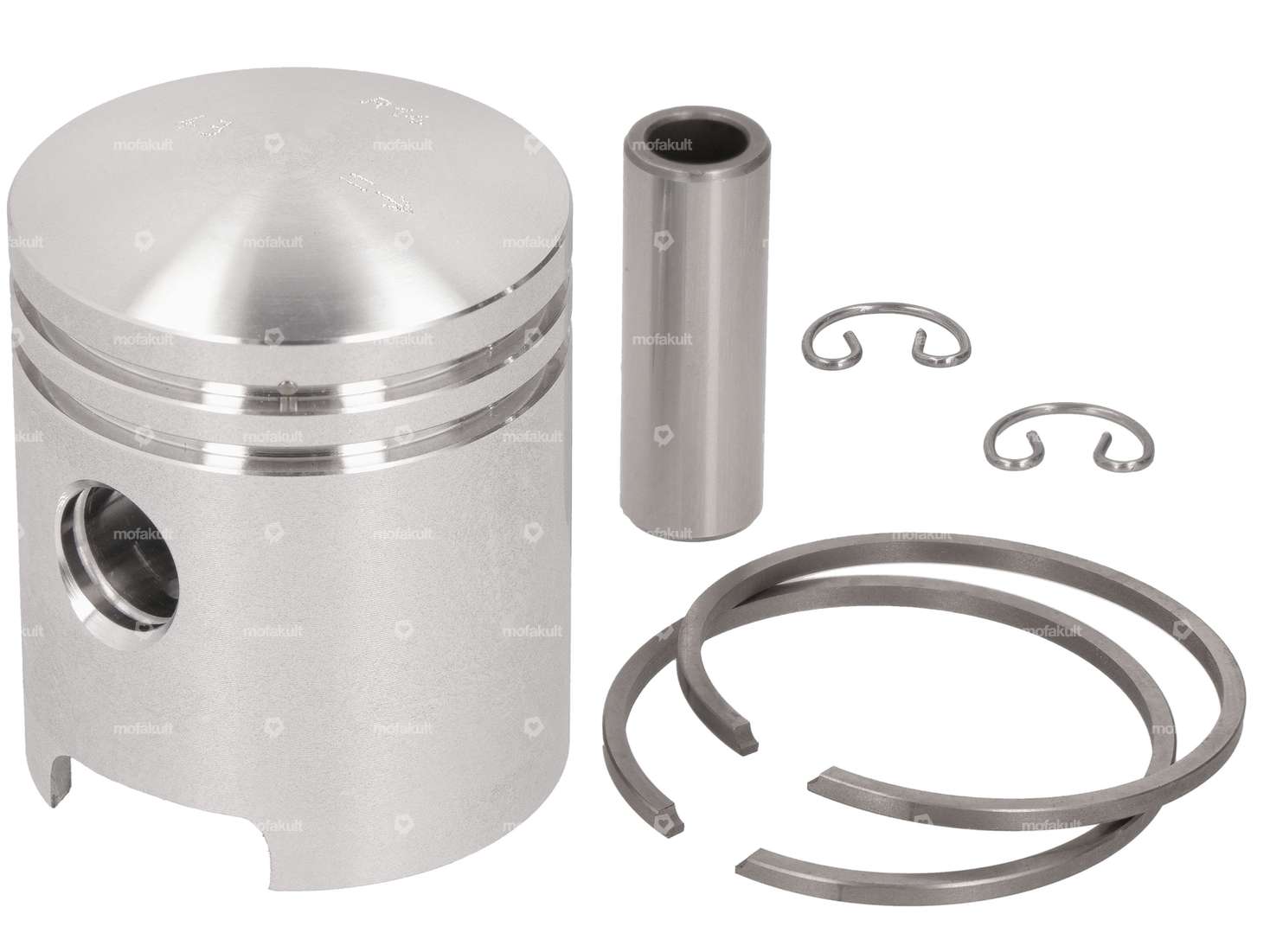

43 mm piston kit with two pieces of 2 mm rectangular piston ring with flank lock (FS) for your Tomos moped / moped.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out more about the relevant piston rings, their stems and locking types on the legend in the pictures.
The piston kit contains pistons, piston pins, piston clips and piston rings.
You can find other piston kits and corresponding assembly tools in the accessories section.
Quality product from the Italian manufacturer Meteor.
Details
| Nominal diameter | 43 mm |
| Manufacturer | Meteor |
| Ø outside piston (A) | 42.94 mm |
| Ø piston pin (B) | 12 mm |
| Compression height (C) | 22.5 mm |
| Curvature (D) | 4 mm |
| Total piston height (E) | 53 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Piston ring height | 2 mm |
| Piston weight | 105 g |
Suitable for the following models
| Tomos |
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Area of application: (Dis)assembly tool · Material: Steel · Surface: burnished · Number of components: 7 pcs · Total length: 130 mm · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Width across flats SW: 10 mm · Width across flats SW: 17 mm
EUR 22.40

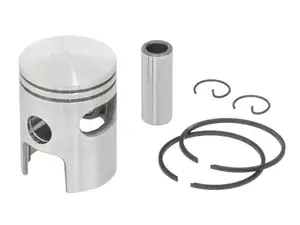

Airsal piston 38 mm (12 mm KoBo) | Tomos A35
Manufacturer: Airsal · Nominal diameter: 38 mm · Ø outside piston (A): 37.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.5 mm · Curvature (D): 3.85 mm · Total piston height (E): 52.35 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm
EUR 56.20

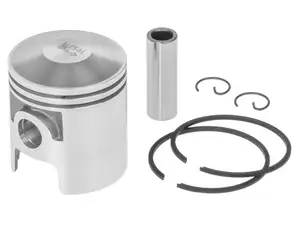

Airsal piston 44 mm (10 mm KoBo) | Tomos A35
Manufacturer: Airsal · Nominal diameter: 44 mm · Ø outside piston (A): 43.95 mm · Ø piston pin (B): 10 mm · Compression height (C): 21.1 mm · Curvature (D): 3.7 mm · Total piston height (E): 49.2 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston weight: 83 g
EUR 52.80

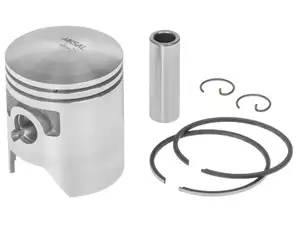

Airsal 44 mm piston (12 mm KoBo) | Tomos A55
Manufacturer: Airsal · Nominal diameter: 44 mm · Ø outside piston (A): 43.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.2 mm · Curvature (D): 3.8 mm · Total piston height (E): 62.65 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston weight: 92 g
EUR 52.80
GPO piston 44 mm (12 mm KoBo) | Tomos A3/A35
Manufacturer: GPO · Nominal diameter: 44 mm · Ø outside piston (A): 43.96 mm · Ø piston pin (B): 12 mm · Compression height (C): 21.9 mm · Curvature (D): 4.15 mm · Total piston height (E): 49.55 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm
EUR 42.70

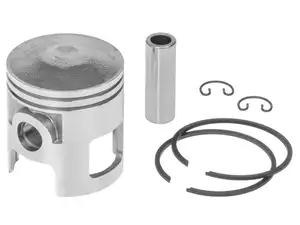

Piston 45 mm (12 mm KoBo) | Tomos A3 / A35
Nominal diameter: 45 mm · Ø outside piston (A): 44.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 22 mm · Curvature (D): 4 mm · Total piston height (E): 49.55 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston weight: 91 g
EUR 39.30
