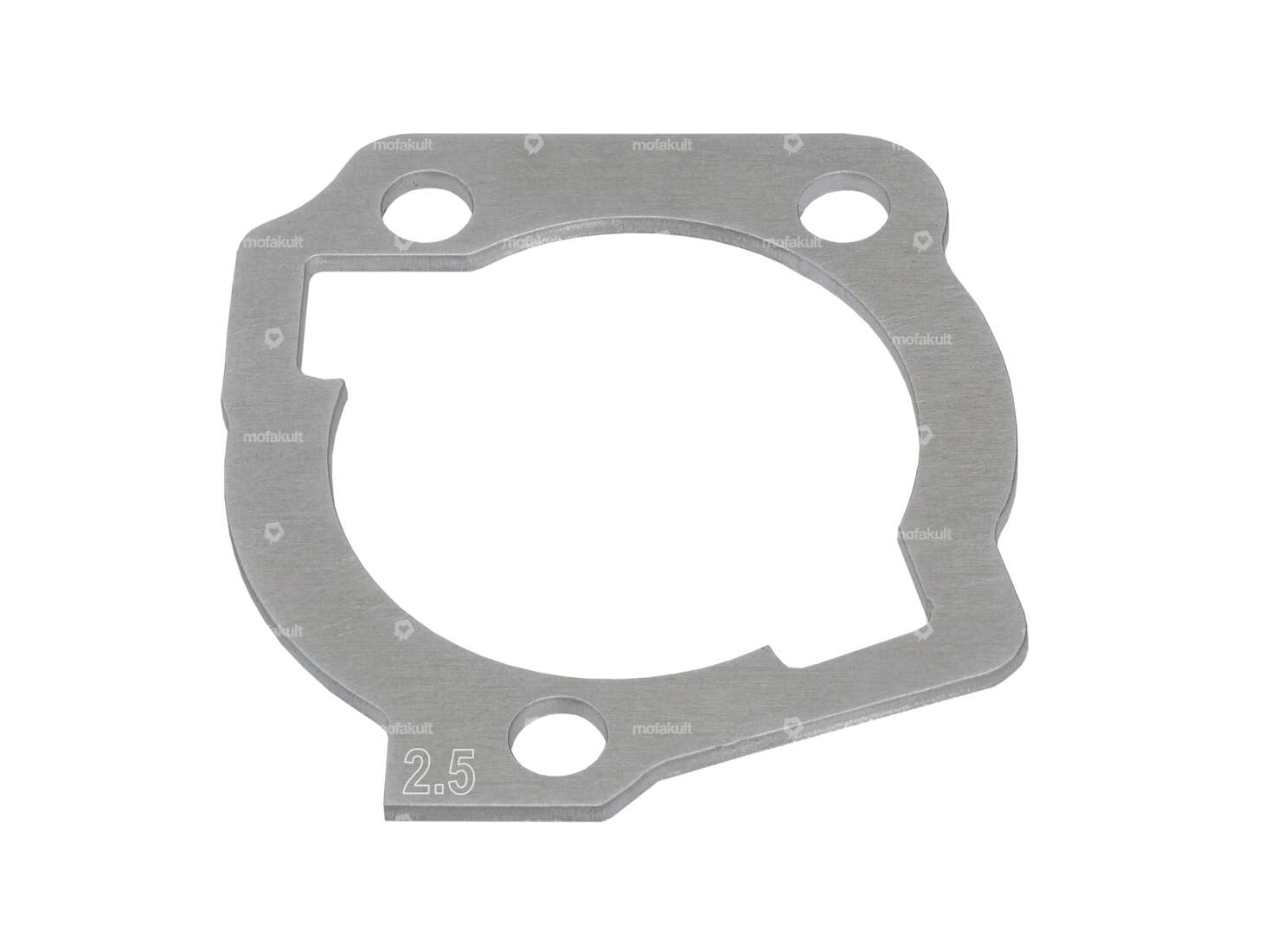

Aluminum stroke plate for your Piaggio Ciao, Si, Bravo, Boxer, Boss, Grillo and Gilera moped / moped.
The spacer is mounted under the cylinder base. The "lifting" of the cylinder increases the intake and exhaust timing. Accordingly, the same distance of the spacer at the top of the cylinder
should be turned down so that the original squish edge dimension and compression are maintained.
Material thickness: 2.5 mm
Material: aluminum
We recommend using Dirko silicone sealant for sealing. You can find this in the accessories
.Details
| Material | Aluminum |
| Thickness | 2.5 mm |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
