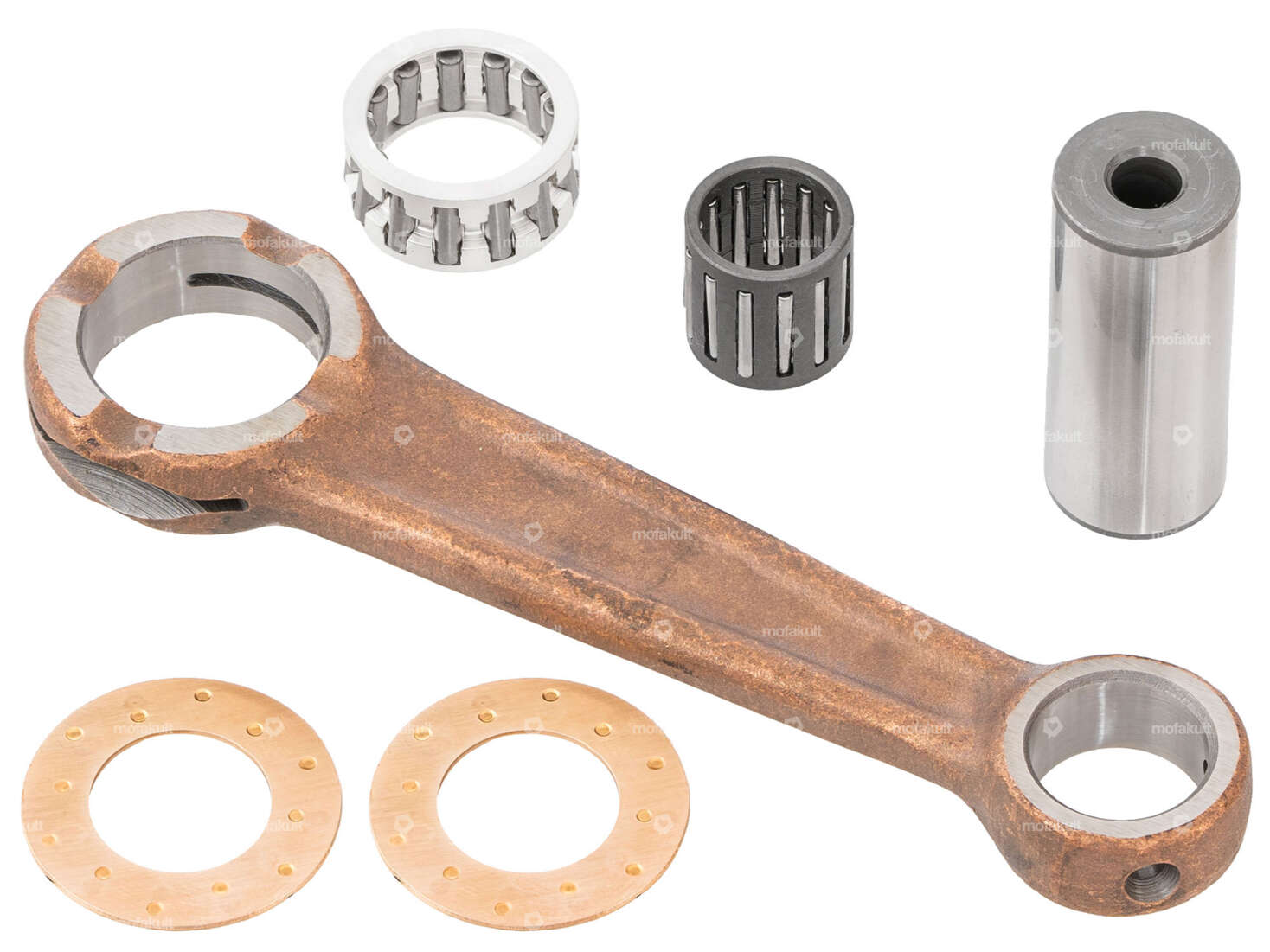

Complete connecting rod suitable for crankshafts of various Zündapp engines.
Some dimensions differ from the original Zündapp Belmondo (Type 247) connecting rod.
- Dimension connecting rod bolt 1: Ø16 x 37.85 mm
- Connecting rod length (center - center): 91 mm
- Total connecting rod length: 118.2 mm
- Thickness: 10 mm
- Ø outside lower connecting rod eye: 31 mm
- Ø outside upper connecting rod eye: 23 mm
- Lower needle roller bearing (silver ball): Ø21/16 x 9.75 mm
- Upper needle bearing: Ø15/12 x 12.7 mm
- Ø für piston pin: 12 mm
The two brass spacers are included.
Branded product from the Portuguese manufacturer Jasil under the Top Racing brand.
Details
| Total length | 118.2 mm |
| Manufacturer | Jasil |
| Material | Steel |
| Surface | copper-coated |
| Area of application | Standard, Tuning |
| Connecting rod length center-center | 91 mm |
| Ø Connecting rod bolt | 16 mm |
| Thickness | 10 mm |
| Ø lower connecting rod eye outside | 31 mm |
| Ø upper connecting rod eye outside | 23 mm |
| Ø lower bearing inside | 21 mm |
| Ø inside upper bearing | 15 mm |
| Dimension lower bearing | 16/21 x 9.75 mm |
| Dimension upper bearing | 12/15 x 12.7 mm |
| Ø piston pin (B) | 12 mm |
| Connecting rod pin length | 37.85 mm |
Suitable for the following models
| Zündapp Belmondo | |
| Zündapp |
