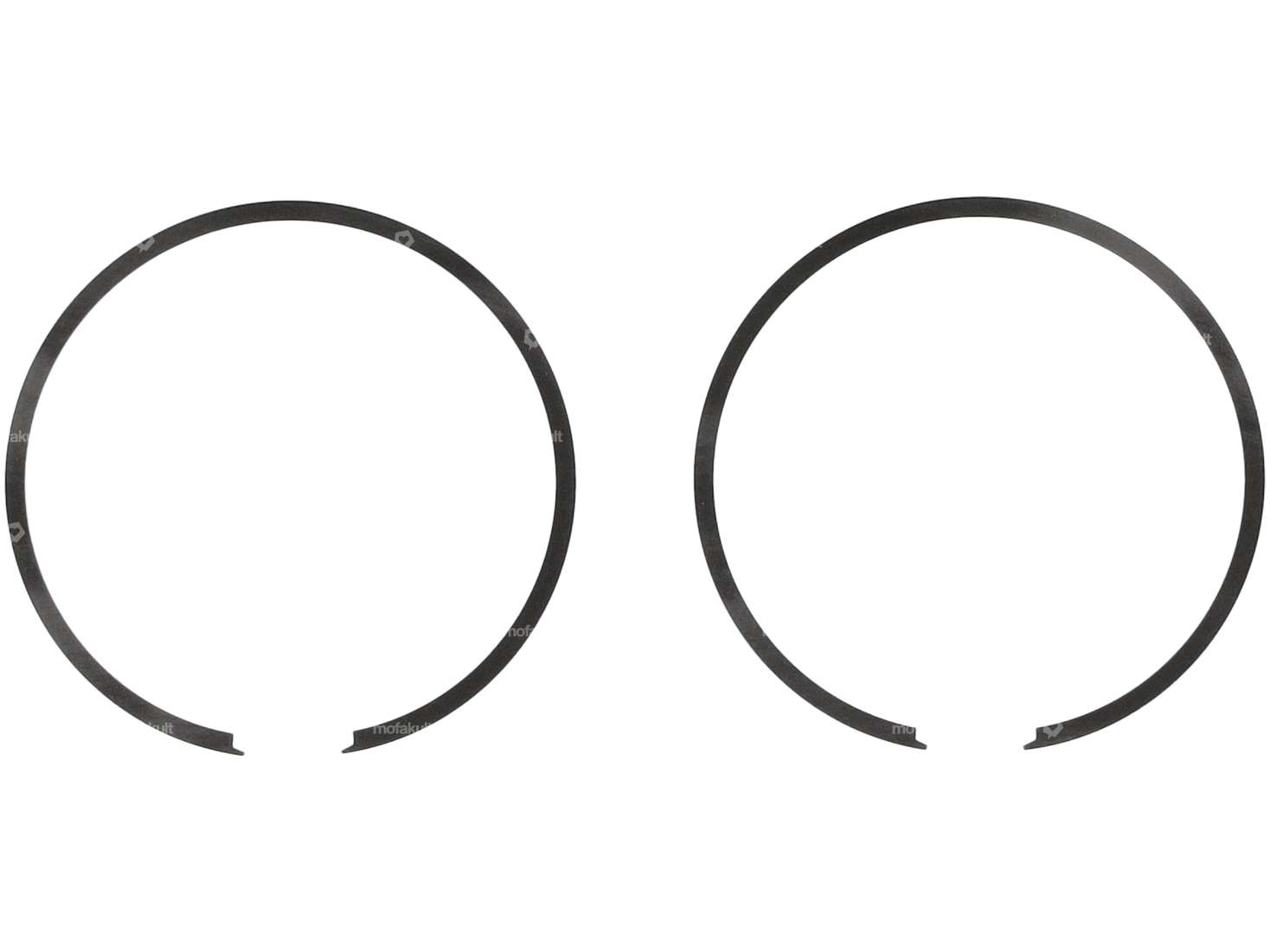

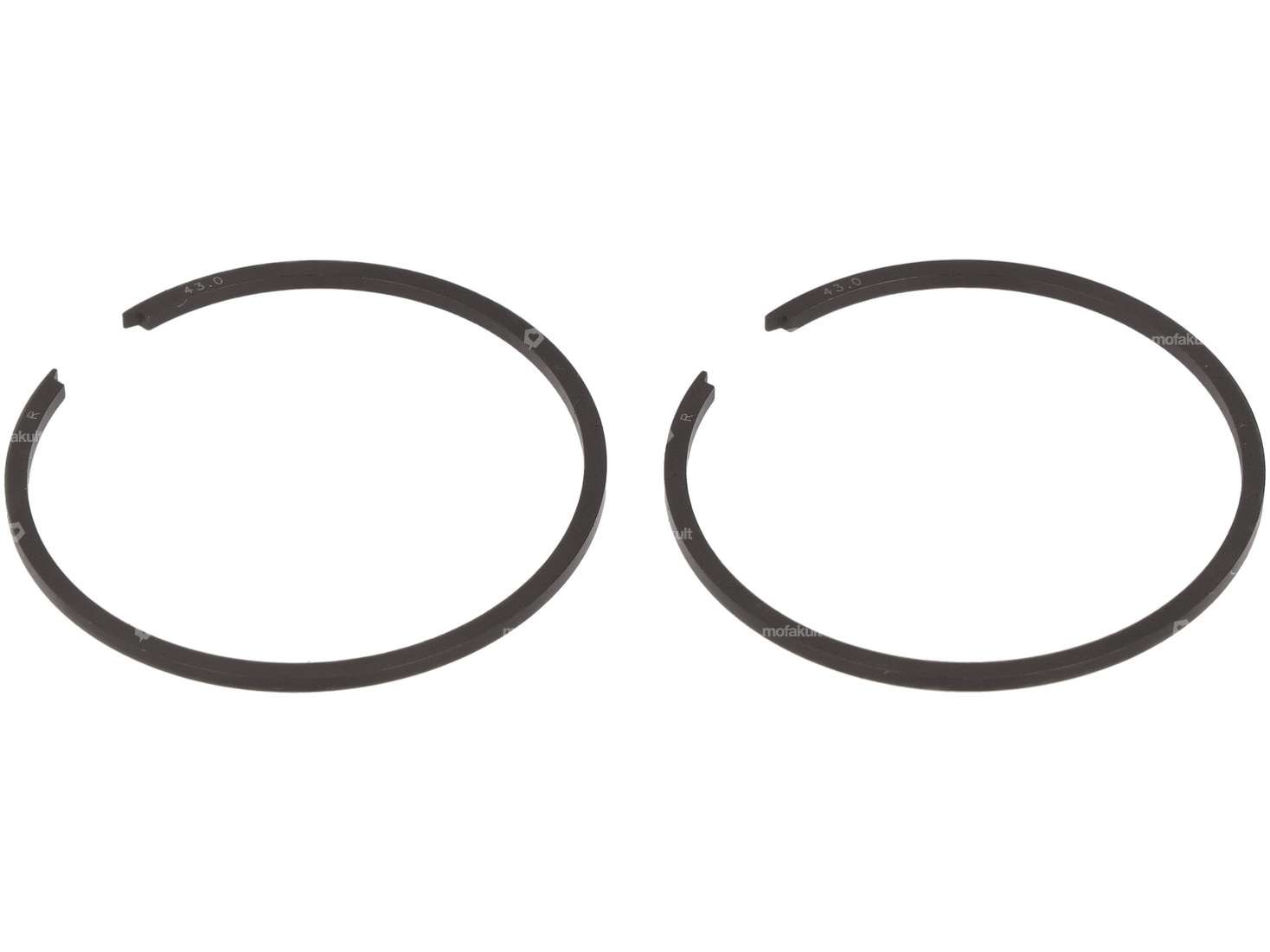

A set of 43 mm compression rings consisting of two rectangular piston rings with internal locking (IS), suitable for various mopeds / mopeds with Sachs 50/2, 50/3, 50/4 engines.
These replacement piston rings are suitable for the GPO Pomodoro 43 mm racing set, among others.

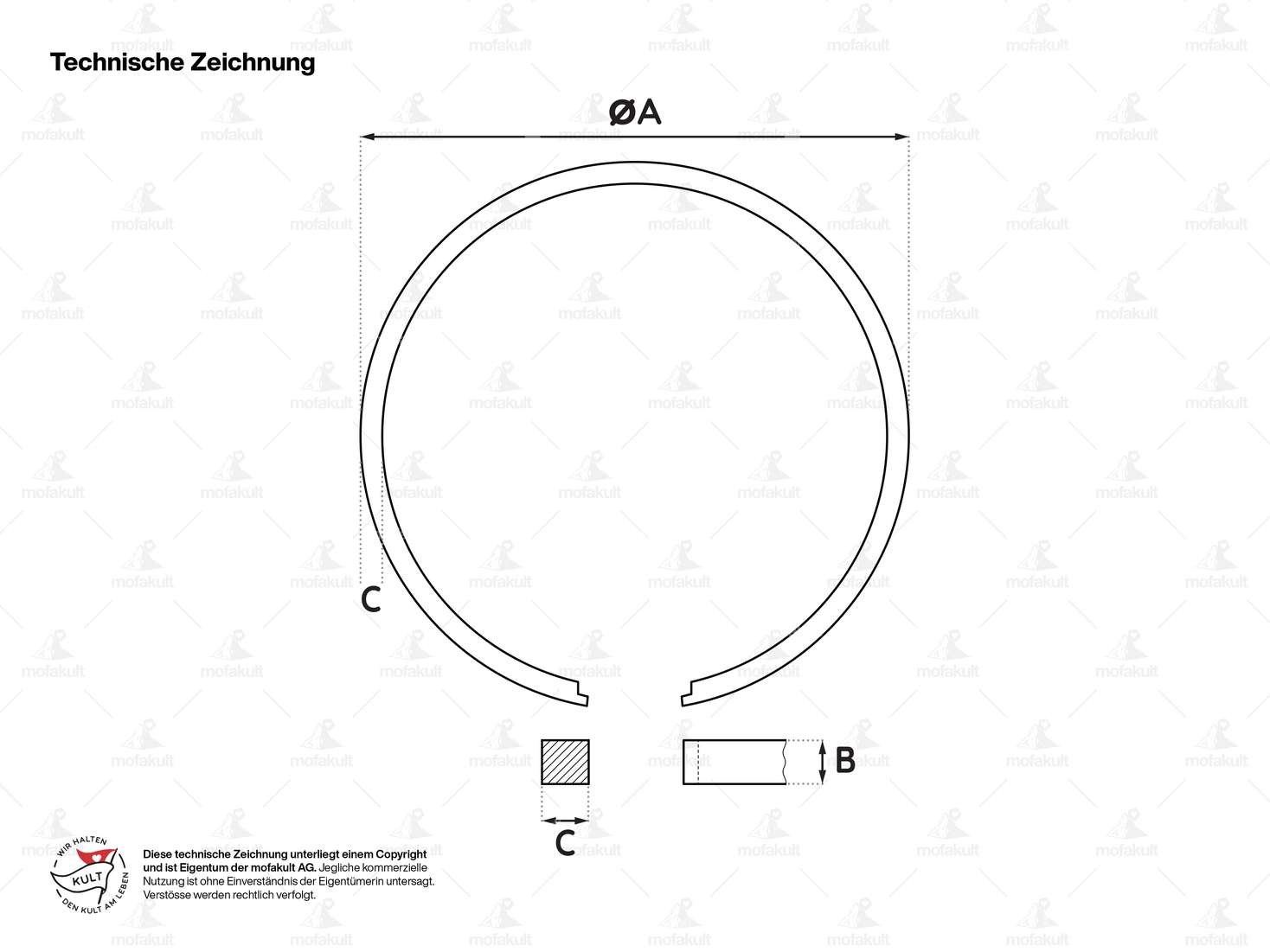

The detailed dimensions of the piston rings according to the technical drawing can be found in the details. You can also find out about the common piston rings, their dimensions and locking types on the legend in the pictures.
Details
| Manufacturer | GPO |
| Area of application | Tuning |
| Nominal diameter | 43 mm |
| Piston ring mold | Rectangular ring |
| Height | 1.5 mm |
| Piston ring impact | Internal fuse (IS) |
| Thick piston ring | 1.7 mm |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 503 |
Accessories & related products
GPO piston 43 mm | Sachs 50/2, 50/3, 50/4
Nominal diameter: 43 mm · Manufacturer: GPO · Ø outside piston (A): 42.94 mm · Compression height (C): 27.7 mm · Curvature (D): 2.4 mm · Total piston height (E): 50.2 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.8 mm · Ø piston pin (B): 12 mm
EUR 51.00
GPO 43 mm "Pomodoro" cylinder kit | Sachs 503
Manufacturer: GPO · Material: Gray cast iron · Displacement: 63 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 43 mm · Ø cylinder neck: 45 mm · Ø Outlet outside: 26 mm · Ø Inlet inside: 19 mm · Hole spacing inlet: 32 mm · Thread inlet: M6x1 (standard thread) · Ø outlet inside: 22 mm · Hole pattern [mm]: 40 x 60 / 37 x 37 · Ø piston pin (B): 12 mm · Outlet type: clamped · Area of application: Tuning
EUR 284.00
BAD ASS Ø 43 mm "Pandora" BigBore tuning cylinder | Sachs 503, 50/2, 502
Manufacturer: BAD ASS · Material: Gray cast iron · Camouflaged: No · Surface: sandblasted · Displacement: 63 ccm · Crankshaft stroke: 42 mm · Nominal diameter: 43 mm · Ø cylinder neck: 45 mm · Ø Outlet outside: 26 mm · Ø outlet inside: 23 mm · Ø Inlet inside: 19 mm · Hole spacing inlet: 32 mm · Thread inlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Area of application: Tuning · Ø piston pin (B): 12 mm · Hole pattern [mm]: 40 x 60 / 37 x 37 · Outlet type: clamped
EUR 363.50
