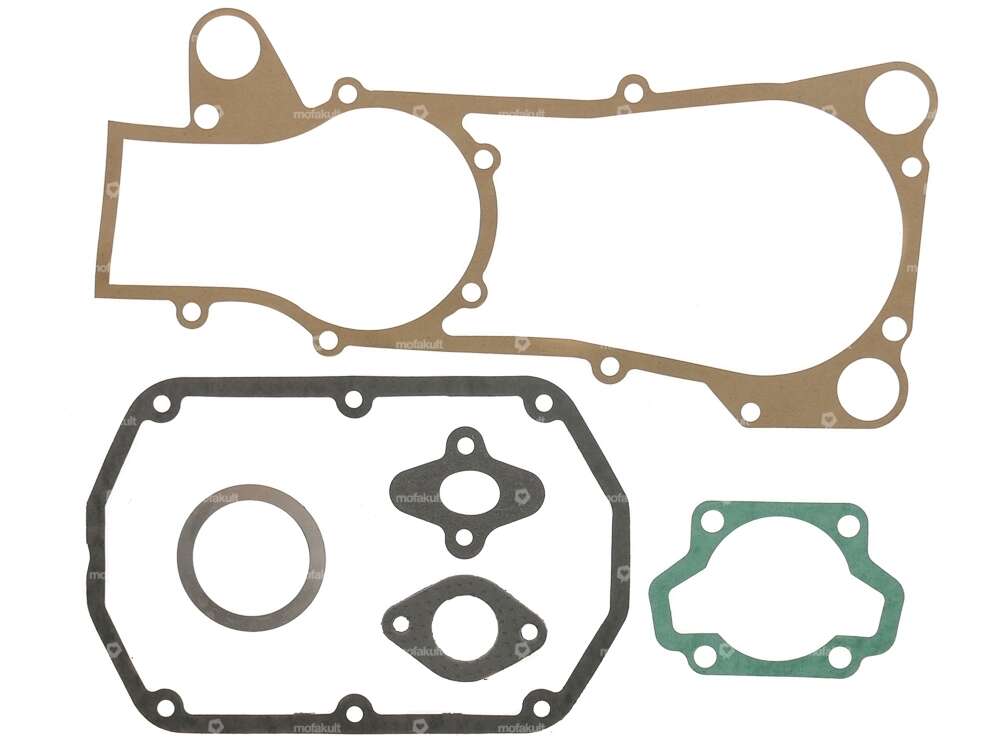

Engine & cylinder gasket set | Garelli NOI

Karcoma fuel tap M12x1 vertical (with union nut) 2 connections

Manufacturer: Karcoma · Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: vertical / vertical · Outlet direction: any · Mounting type: Union nut · Spare tube shape: straight · Thread type: MF12x1 (fine pitch thread) · Reserve level: 50 mm

Magura throttle grip 237 black NOS

Manufacturer: Magura · Material: Aluminum · Housing material: Aluminum · Surface: varnished · Color: black · Material lever: Aluminum · Total length: 177 mm · Ø inside: 22 mm · Brake light switch: No

Rubber ring clutch NOS | Garelli NOI 1-speed automatic

Manufacturer: Garelli · Material: Rubber · Ø outside: 91 mm · Color: black

MKX shock absorber 28 cm black

Manufacturer: MKX · Material: Aluminum · Material: Steel · Surface: varnished · Color: black · Damping type: Spring · Adjustable: Yes · Number of fixing points: 2 pcs · Total length: 280 mm · Mounting type: Nuts & bolts

Nut M10x1 SW14 Flywheel

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Drive: External hexagon · Nut type: Flange nut · Height: 8.9 mm · Ø outside: 18.8 mm · Width across flats SW: 14 mm · Area of application: Standard · Thread type: MF10x1 (fine pitch thread) · Pony OEM number: A4513 · Sachs OEM no.: 0942 072 102

Air filter box NOS | Garelli

Manufacturer: Garelli · Color: black · Material: Plastic · Total length: 100 mm · Width: 60 mm · Height: 45 mm · Ø bore: 12 mm · Ø inside: 60 mm · Mounting type: Plug connection clamped · Area of application: Standard

SKF 6203 Ball bearing 17/40/12

Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6203 · Inner ring width: 12 mm · Ø inside: 17 mm · Manufacturer: SKF · Ø outside: 40 mm · Bearing clearance: CN (standard) · Width: 12 mm · Area of application: Standard · Bearing type: Deep groove ball bearing · Ball bearing closed: No · Pony OEM number: A4503 · Sachs OEM no.: 0932 035 006

Dell'Orto 14/12 L SHA carburetor hand choke

Manufacturer: Dell'Orto · Component group Carburetor: Carburetor complete · Carburetor type: SHA · Nominal diameter: 14 mm · Total length: 58 mm · Ø Internal connection: 18 mm · Height: 95 mm · Mounting type: Plug connection clamped · Ø without reducing sleeve: 21 mm · Width: 65 mm · Ø Inside entrance: 12 mm · Ø Output inside: 14 mm · Ø Air filter connection: 59 mm · Ø fuel hose connection: 6 mm · Choke control: Hand choke · Area of application: Standard · Area of application: Tuning · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 57

Polini 46 mm cylinder kit | Garelli Noi 50 Matic

Nominal diameter: 46 mm · Manufacturer: Polini · Material: Gray cast iron · Surface: varnished · Displacement: 65 ccm · Crankshaft stroke: 39 mm · Ø cylinder neck: 49.8 mm · Ø cylinder neck: 51.4 mm · Ø outlet inside: 23.5 mm · Inlet window: 20.5 · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Hole spacing outlet: 45 mm · Thread outlet: M5x0.8 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 48 x 48 · Camouflaged: No · Area of application: Tuning

GPO gasket set 43 mm "Pomodoro" | Sachs 503

Manufacturer: GPO · Number of components: 3 pcs · Material: Aluminum · Material: Sealing carton · Material: Sealing paper · Ø cylinder: 43 mm · Thickness: 0.3 mm · Thickness: 0.4 mm · Thickness: 1 mm · Hole spacing inlet: 0 - 32 mm
