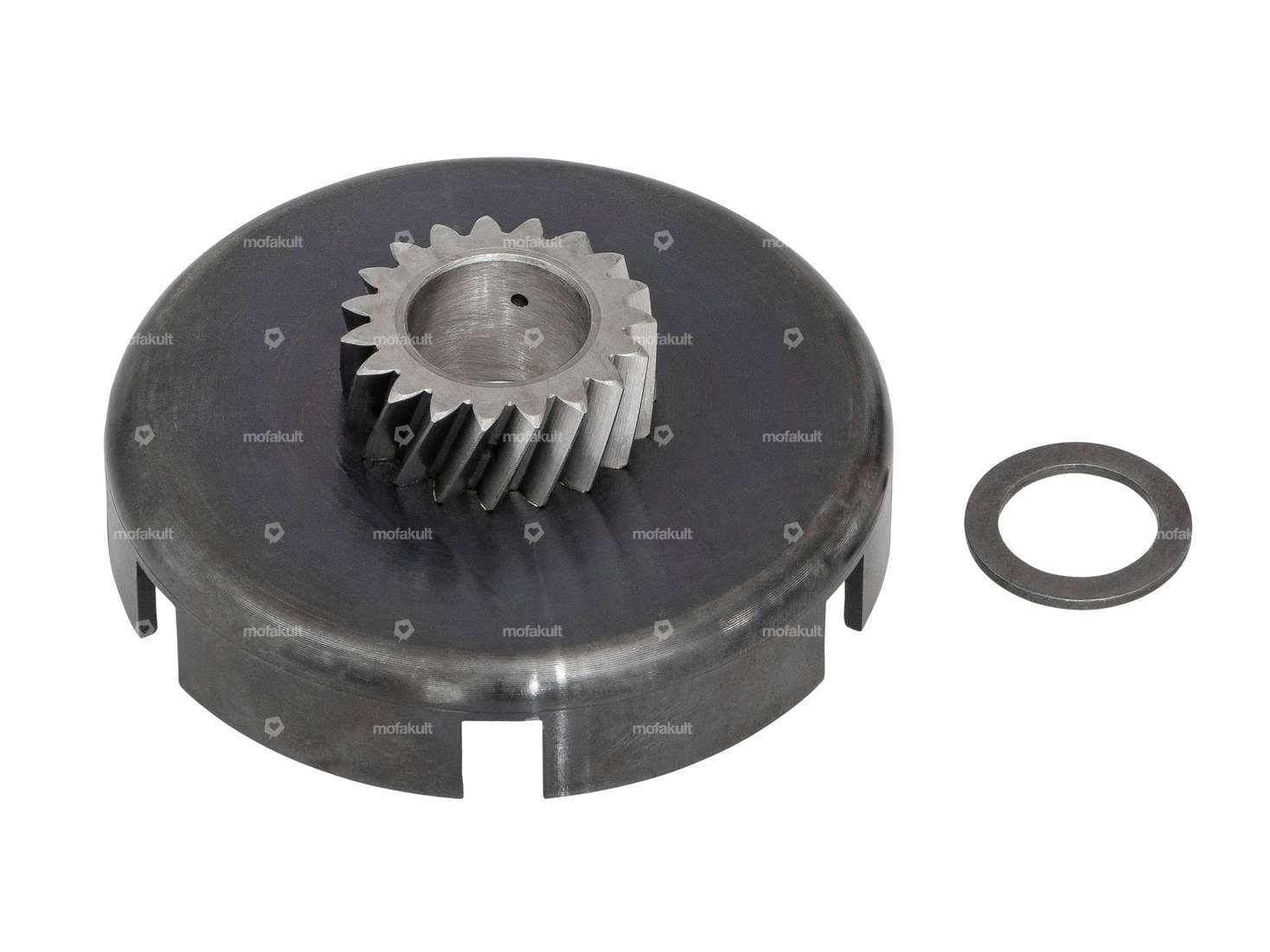

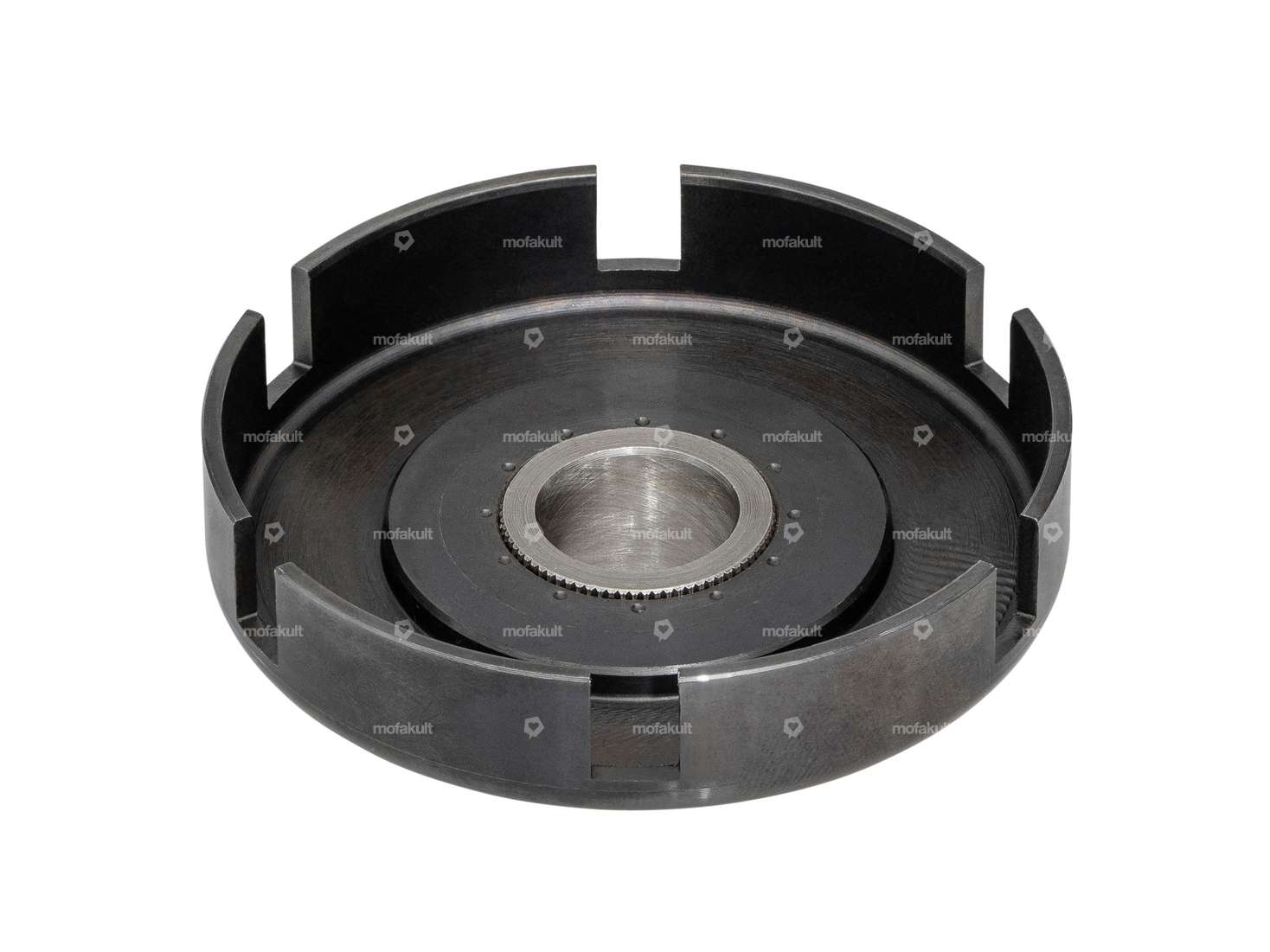

Clutch basket Z50 19 teeth | Puch X30

Karcoma fuel tap M12x1 vertical (with union nut) 2 connections

Manufacturer: Karcoma · Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: vertical / vertical · Outlet direction: any · Spare tube shape: straight · Thread type: MF12x1 (fine pitch thread) · Reserve level: 50 mm · Mounting type: Union nut

GPO clutch plates (pair) | Puch X30

Manufacturer: GPO · Area of application: Standard · Number of slats: 2 pcs

swiing® revival gasket set Z50 engine | Puch X30 NS / NL

Manufacturer: swiing® revival parts · Material: Sealing paper · Area of application: Standard · Number of components: 10 pcs · Ø outlet inside: 22 mm · Hole pattern [mm]: 44 x 44 · Hole spacing outlet: 42 mm · Hole spacing inlet: 32 - 38 mm

swiing® revival gasket set | Puch X30 Velux

Manufacturer: swiing® revival parts · Area of application: Standard · Number of components: 11 pcs · Ø outlet inside: 22 mm · Hole pattern [mm]: 44 x 44 · Hole spacing outlet: 42 mm

swiing® revival gearbox cover gasket (old model) | Puch Z50 engine

Manufacturer: swiing® revival parts · Material: Sealing paper · Number of components: 1 pcs · Thickness: 0.35 mm · Number of fixing points: 8 pcs · Total length: 166 mm · Width: 155 mm · Color: sand-colored

Woodruff key 3 x 3.7 mm

Material: Steel · Total length: 9.15 mm · Width: 3 mm · Height: 3.7 mm

swiing® revival wheel bearing 25/37/6.3 coaster wheel

Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 25 mm · Manufacturer: swiing® revival parts · Ø ball: 6.34 mm · Groove ring: No · Area of application: Standard · Material: Steel · Stock number: K042 · Bearing type: Ball ring · Ø inside: 25 mm · Ø outside: 36 mm · Width: 6.8 mm · Ball bearing closed: No

Motorex engine oil (gear oil) manual 450 ml

Manufacturer: Motorex · Viscosity (SAE): 80W · Area of application: Gearbox lubrication with clutch · Oil type: GL4 · Contents [ml]: 450 ml · Gearbox type: Foot control · Gearbox type: Manual gearshift · Temperature resistance (min.): -30 - 220 °C

swiing® revival bearing & shaft seals | Puch Z50

Manufacturer: NTN · Manufacturer: SKF · Manufacturer: swiing® revival parts · Material: Plastic · Area of application: Standard · Material: Steel · Number of components: 6 pcs

swiing® revival shim set crankshaft L17 | Puch Z50

Ø inside: 17.1 mm · Nominal diameter inside: 17 mm · Ø outside: 23.8 mm · Thickness: 0.1 mm · Thickness: 0.15 mm · Thickness: 0.2 mm · Thickness: 0.25 mm · Thickness: 0.3 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: blank / oiled
