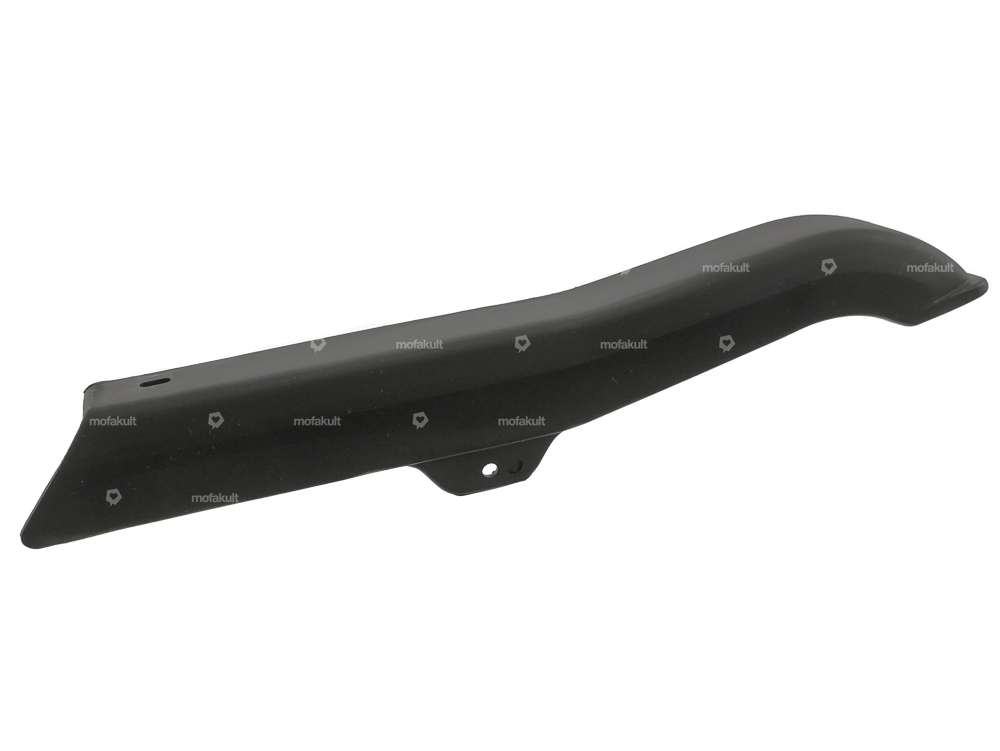

Chain guard black Tomos

KMC drive chain 415H (reinforced) 128L

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: KMC · Material: Steel · Surface: blank / oiled · Color: gray · Number of chain links: 128 pcs · Rolling circumference: 1626 mm · Chain lock type: Spring lock · Ø bore: 4 mm · Ø Pin: 3.94 mm

NTN 6203 C3 Ball bearing 17/40/12

Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 12 mm · Manufacturer: NTN · Bearing clearance: C3 · Groove ring: No · Material: Steel · Surface: blank · Bearing type: Deep groove ball bearing · Width: 12 mm · Ø inside: 17 mm · Ø outside: 40 mm · Area of application: Standard · Stock number: 6203 · Ball bearing closed: No

NSK 6201 ball bearing 12/32/10

Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 10 mm · Manufacturer: NSK · Bearing clearance: CM (special/noise-reduced) · Groove ring: No · Material: Steel · Surface: blank · Bearing type: Shoulder bearing · Width: 10 mm · Stock number: 6201 · Ø outside: 32 mm · Ø inside: 12 mm · Area of application: Standard · Ball bearing closed: No

Outlet gasket 18 - 22 mm metal ring

Place of use: Outlet · Material: Sealing carton · Material: Sheet metal (steel) · Ø inside: 22 mm · Number of fixing points: 2 pcs · Hole spacing: 38 - 42.5 mm · Ø mounting hole: 6.7 mm · Thickness: 2 mm

Continental 2.00 - 2.50 x 16" tube

Valve type: TR6 car valve · Manufacturer: Continental · Tire width [inch]: 2 - 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width [inch]: 2 · Width [inch]: 2 1/4 · Width [inch]: 2 1/2 · Wheel size [inch]: 16 " · Tire height [%]: 100 · Old designation: 20 x 2 · Old designation: 20 x 2.25 · Old designation: 20 x 2.5

NTN 608 Ball bearing 8/22/7

Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 7 mm · Manufacturer: NTN · Bearing clearance: CN (standard) · Bearing type: Deep groove ball bearing · Width: 7 mm · Ø inside: 8 mm · Ø outside: 22 mm · Stock number: 608

Axle rear swing arm | Tomos

Material: Steel · Surface: blackened · Surface: galvanized (blue) · Color: black · Drive: External hexagon · Ø axle: 12 mm · Ø inside: 12.15 mm · Ø Bearing inside: 18.1 mm · Ø outside: 18 mm · Ø outside: 22 mm · Ø External bearing: 22 mm · Total length: 120 mm · Thread type: M12x1.75 (standard thread) · Tomos OEM number: 026083 · Tomos OEM number: 209144

Speedometer drive 16" left with grease nipple holder

Material: Aluminum · Place of use: left · Color: gray · Wheel size [inch]: 16 " · 4-edge speedometer cable: 1.9 mm · Thread type: MF10x1 (fine pitch thread) · Ø axle: 11 mm · Ø outside: 42 mm · Overall width outside: 48 mm · Ø mounting hole: 11.2 mm · Total height: 52 mm

Side panel left Tomos

Manufacturer: Tomos · Material: Plastic · Color: black · Tomos OEM number: 229708 · Tomos OEM number: 242039

GPO gasket outlet metal ring 18 - 22 mm | Tomos

Manufacturer: GPO · Number of fixing points: 2 pcs · Ø inside: 22.15 mm · Place of use: Outlet · Ø mounting hole: 6 mm · Thickness: 2 mm · Hole spacing: 38 - 43 mm · Tomos OEM number: 227149
