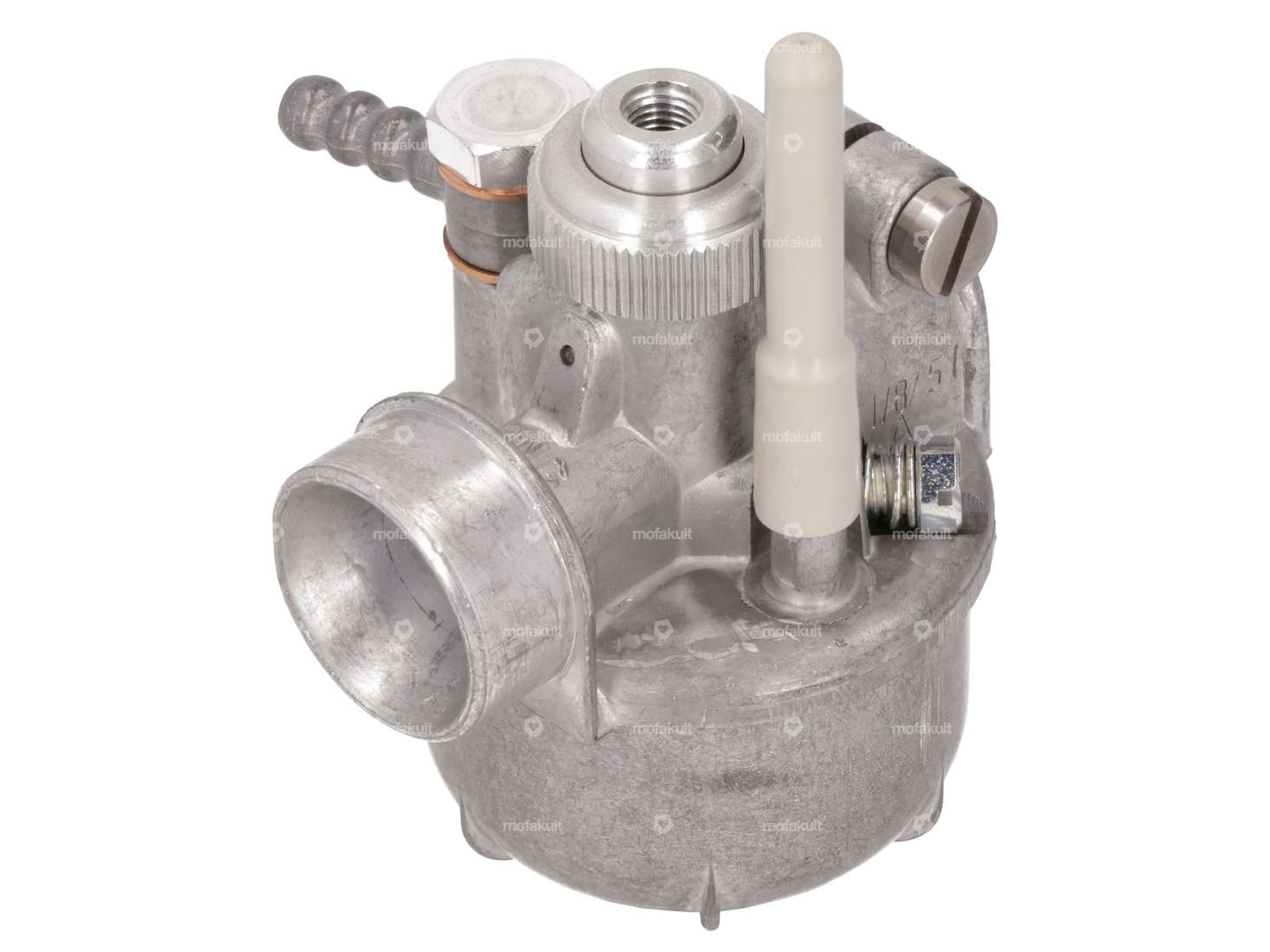

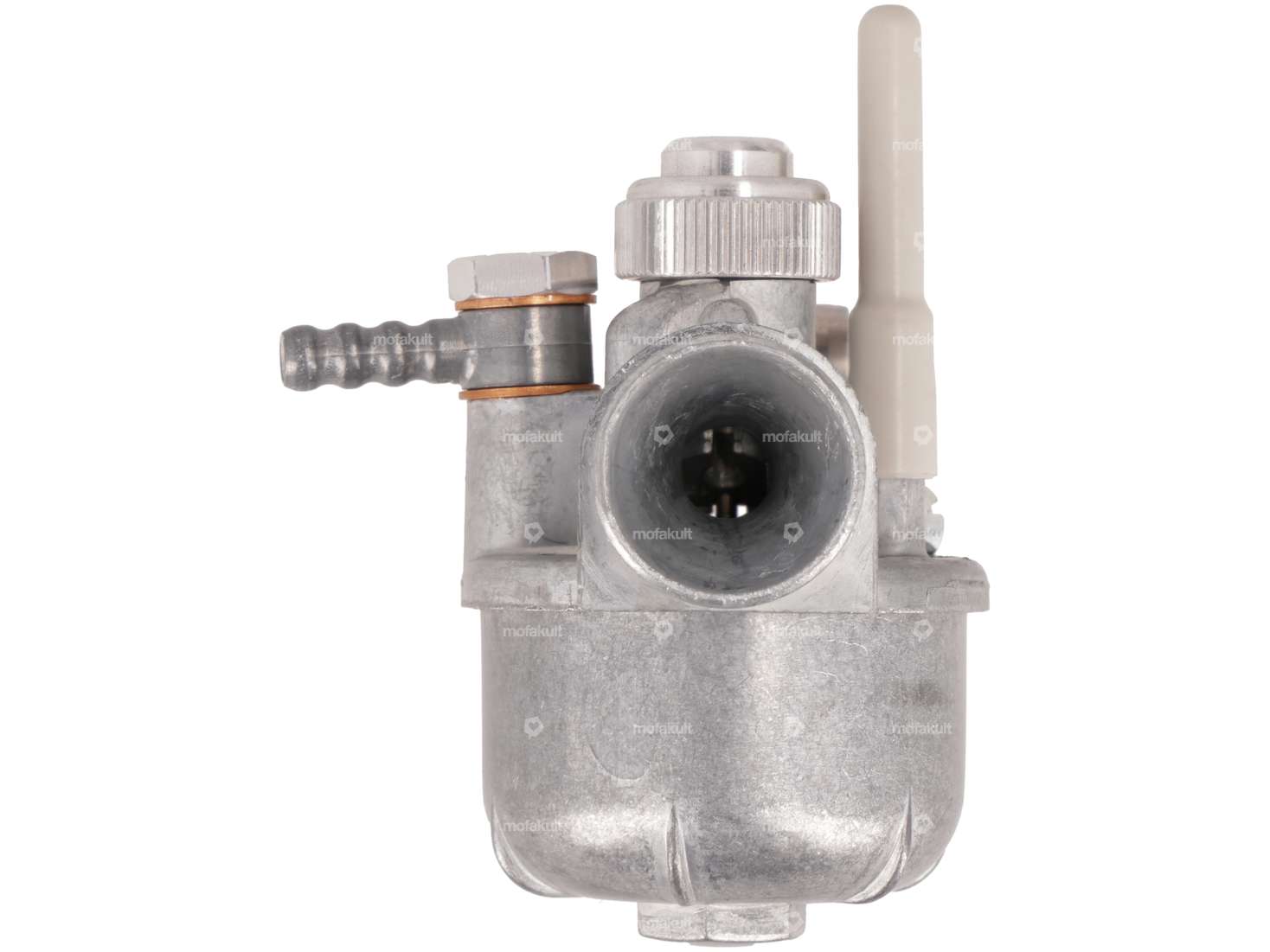

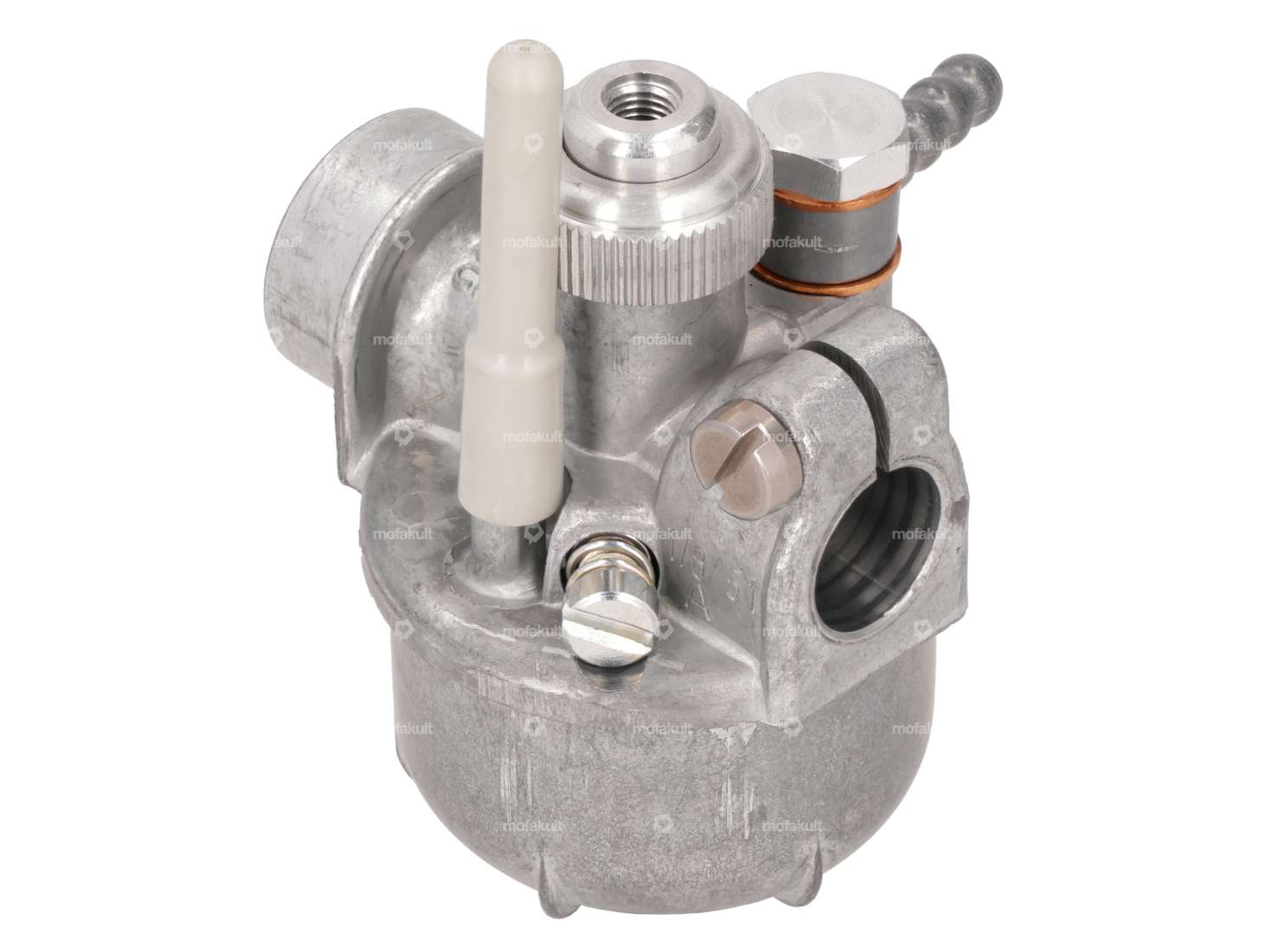

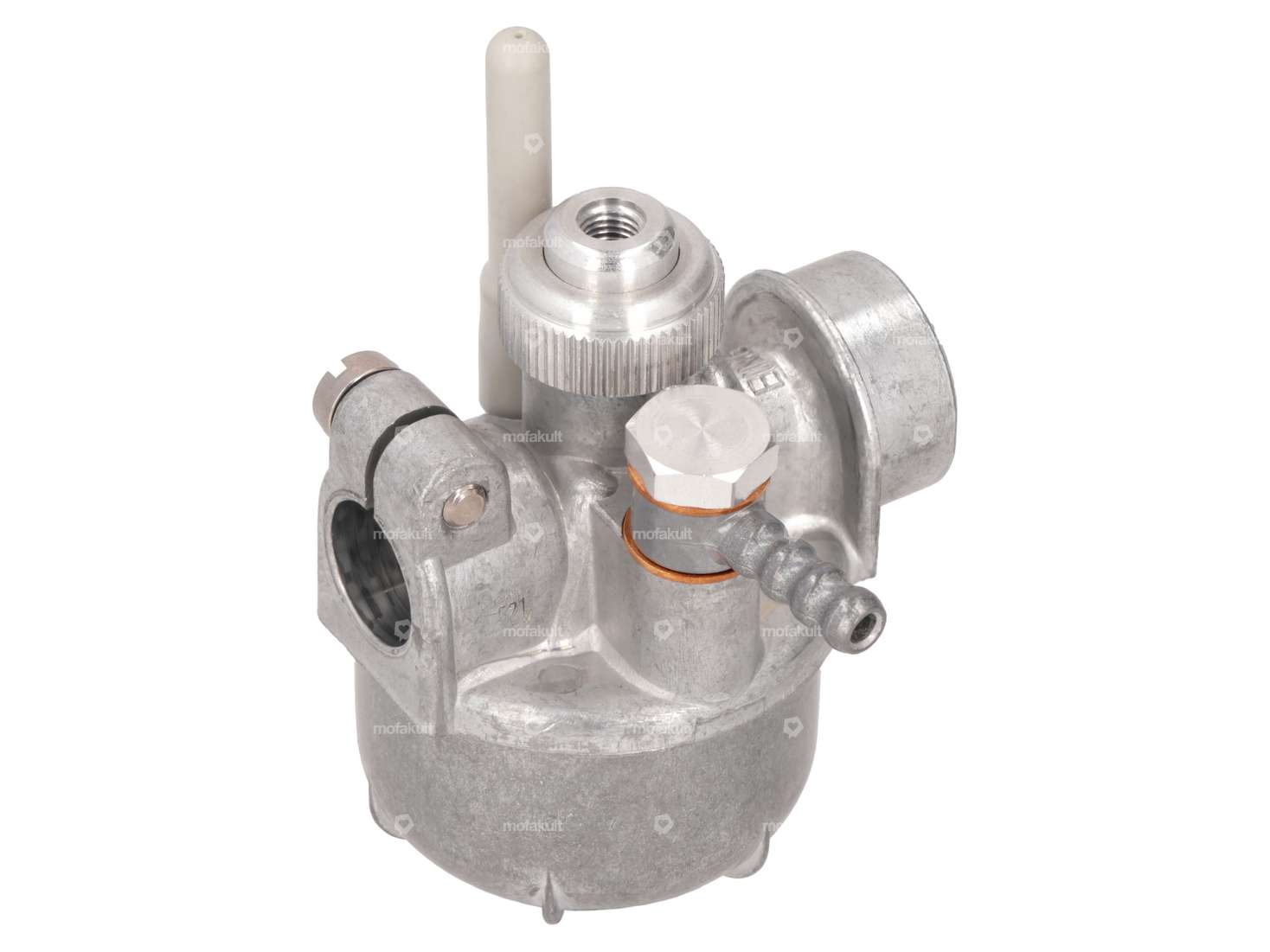

Original Bing carburetor suitable for Puch Velux X30 and Zündapp Belmondo mopeds.
The carburetor is physically identical to the 10mm carburetor which was originally installed on the Puch Velux X30 mopeds.
With a little skill and practice, the carburetor can also be reamed to 11mm, making it a top alternative to the Velux X30 1/11/35 carburetor, which is no longer available.
Internal diameter: 8 mm
Connection diameter (intake): 14 mm
Connection diameter air filter: 23 mm
Sink size: 60
Original BING spare part manufactured in Germany in original equipment quality.
Details
| Manufacturer | BING |
| Area of application | Original |
| Component group Carburetor | Carburetor complete |
| Carburetor type | SRA (1/11/35) Velux |
| Nominal diameter | 8 mm |
| Ø fuel hose connection | 6 mm |
| Ø Internal connection | 14 mm |
| Ø Air filter connection | 23 mm |
| Mounting type | Plug connection clamped |
Suitable for the following models
| Puch | |
| Zündapp Belmondo |
