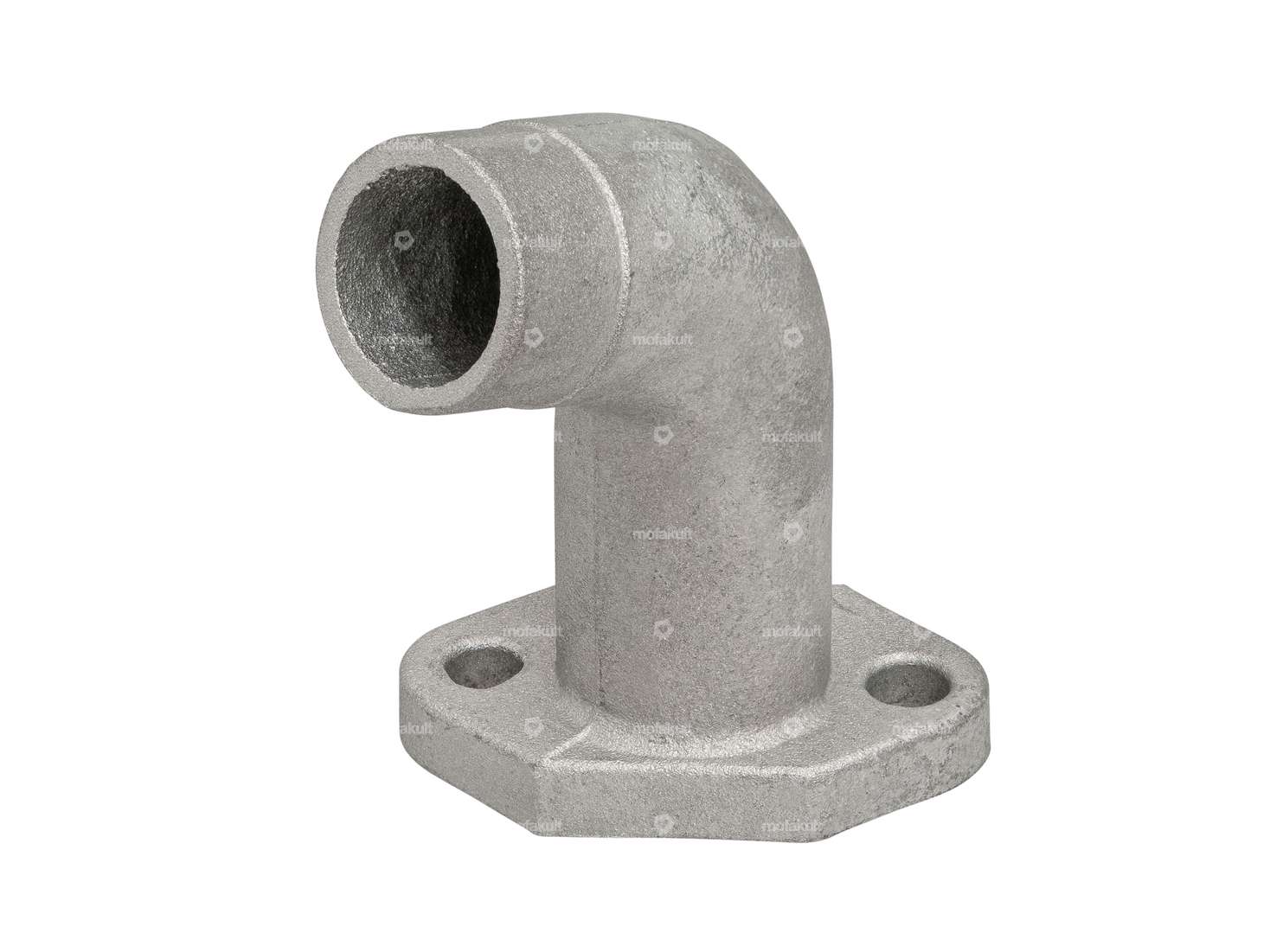

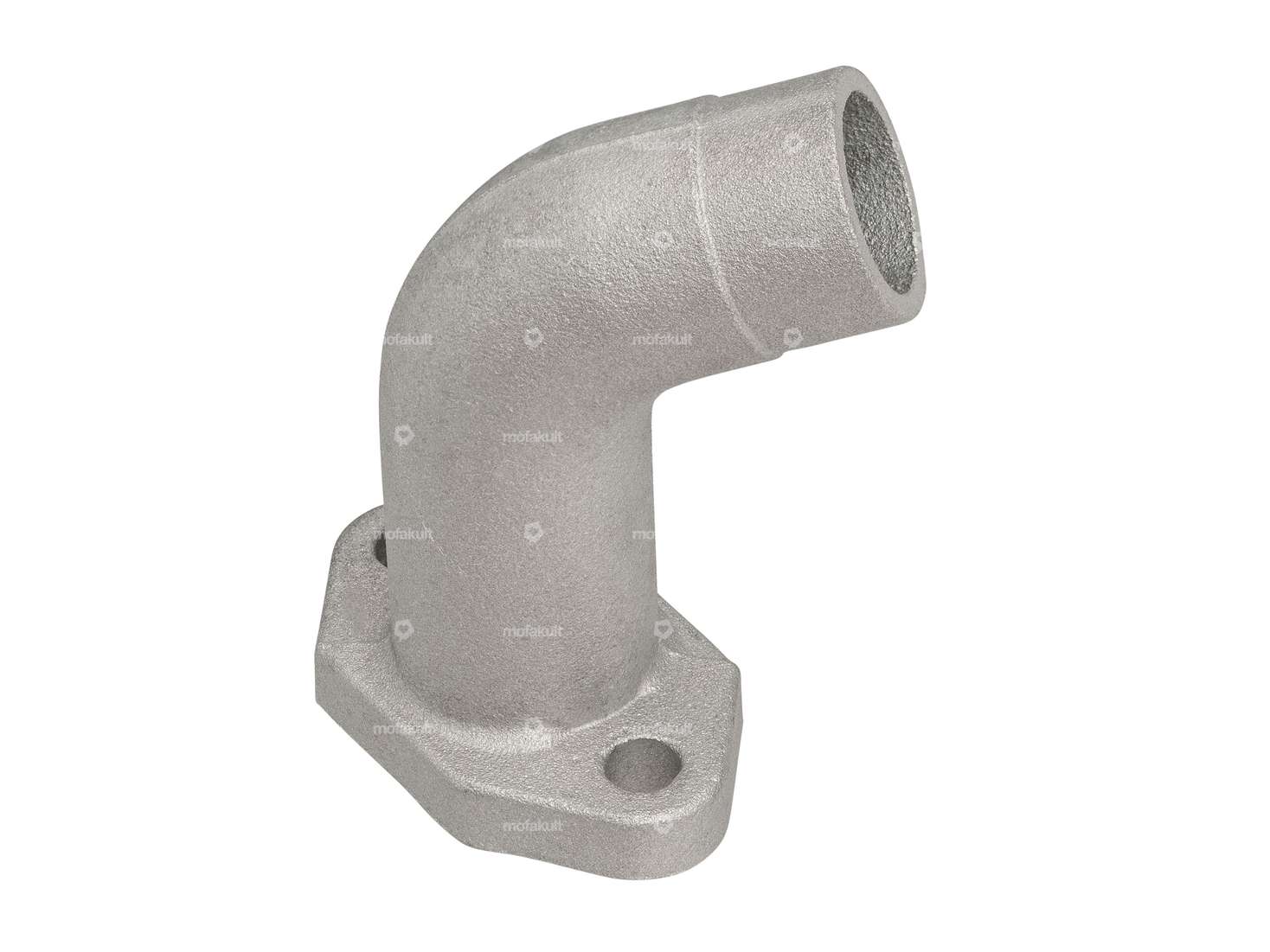

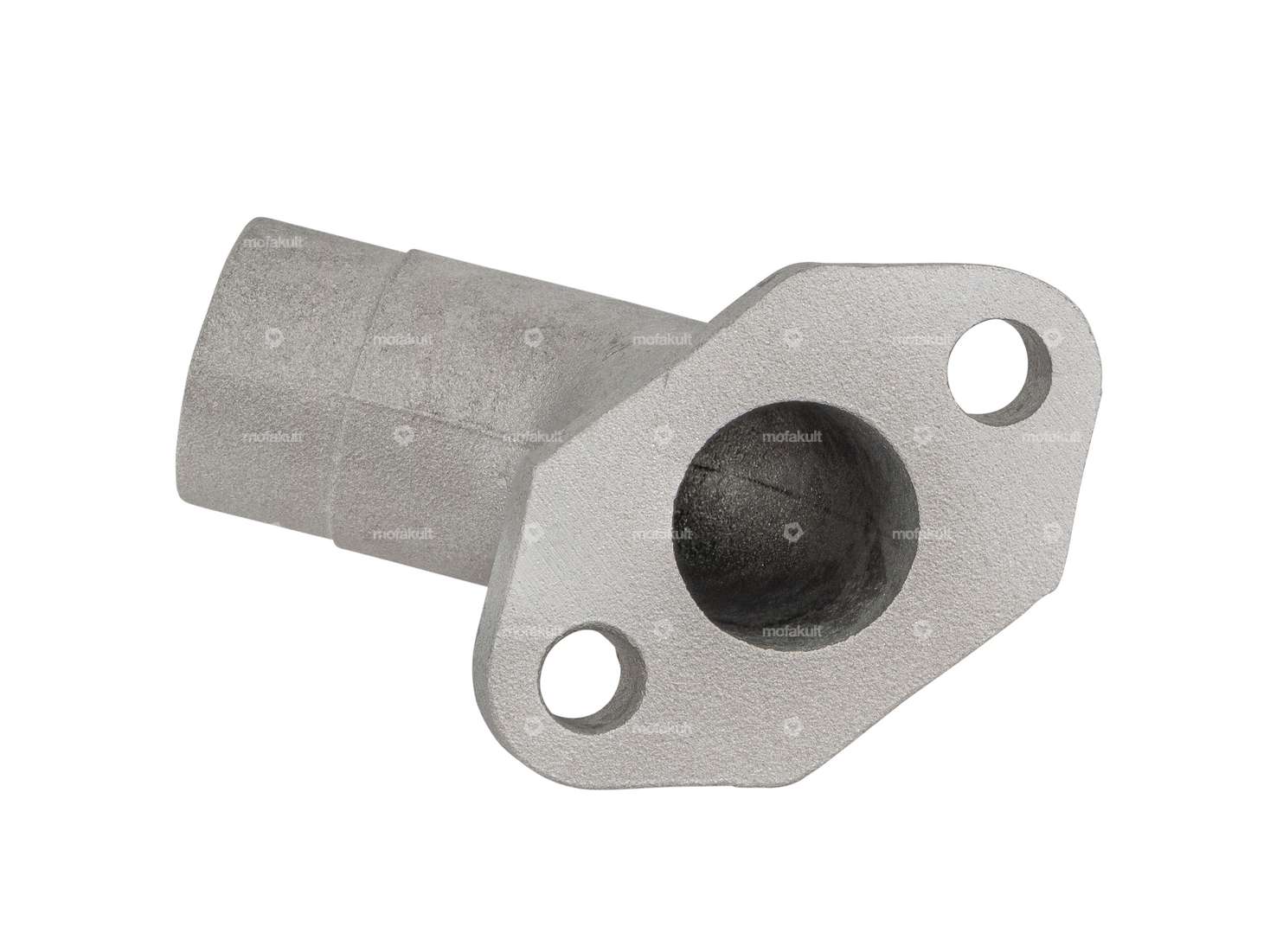

Special intake manifold for mopeds / mopeds with Airsal 46 and 47 mm racing cylinders.
Of course also fits all other cylinders. Carburettor comes out from the side.
Ø inside: 19 mm
Ø outside: 24 mm
This intake manifold is therefore compatible with all Dell'Orto PHBG carburettors.
Quality product from the Spanish manufacturer Airsal.
Details
| Total length | 60 mm |
| Total height | 75 mm |
| Manufacturer | Airsal |
| Material | Aluminum |
| Area of application | Tuning |
| Ø inside | 19 mm |
| Number of fixing points | 2 pcs |
| Camouflaged | No |
| Ø External connection | 24 mm |
| Mounting type | Screws |
| Height flange center hole | 65 mm |
| Hole spacing inlet | 38 mm |
Suitable for the following models
| Puch |
